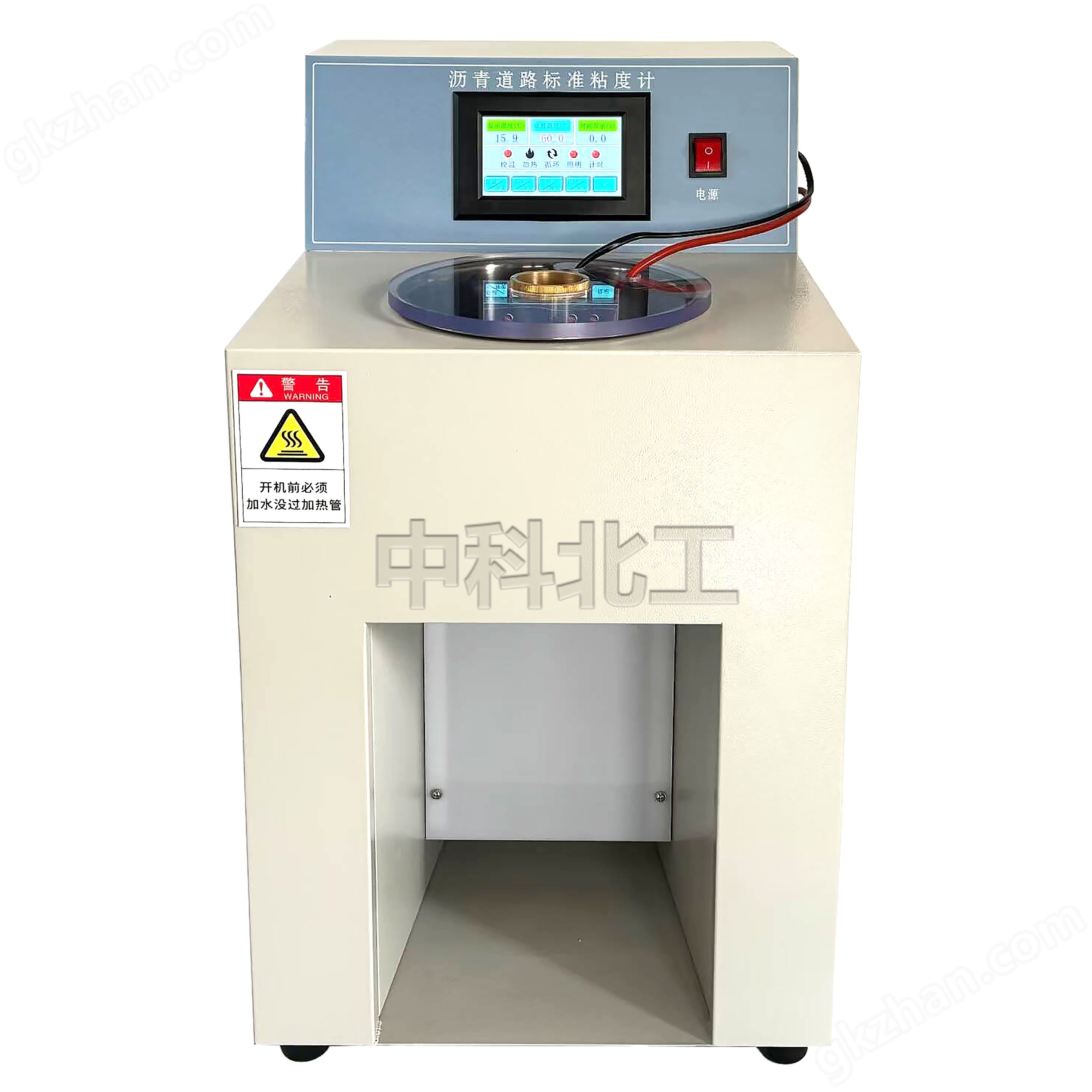

New Standard 0621 Road Asphalt Standard Viscosity Tester
NegotiableUpdate on 03/06
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
The new standard 0621 Road Asphalt Standard Viscosity Tester is suitable for measuring the viscosity of liquid petroleum asphalt, asphalt, emulsified asphalt and other materials in their flow state. The viscosity of $r $n $r $n asphalt is the time required for the asphalt material to flow out 50 milliliters from the specified flow hole at a specified temperature, expressed in seconds.
Product Details
Product Overview
New Standard 0621 Road Asphalt Standard Viscosity TesterSuitable for measuring the viscosity of liquid petroleum asphalt, asphalt, emulsified asphalt and other materials in their flow state.
The viscosity of asphalt is the time required for 50 milliliters of asphalt material to flow out of a specified flow hole at a specified temperature, expressed in seconds.
Product Overview
New Standard 0621 Road Asphalt Standard Viscosity TesterSuitable for measuring the viscosity of liquid petroleum asphalt, asphalt, emulsified asphalt and other materials in their flow state.
The viscosity of asphalt is the time required for 50 milliliters of asphalt material to flow out of a specified flow hole at a specified temperature, expressed in seconds.
Technical Specifications
1. Temperature control range: room temperature~90 ℃ Temperature control accuracy: 0.1 ℃
2. Timing resolution: 0.1s, maximum timing value 999.9s
3. Heating power: 500W Power supply voltage: AC (22010%) V50HZ
4、 流孔直径: φ2mm±0.025mm φ3mm±0.025mm φ4mm±0.025mm φ5mm±0.025mm φ10mm±0.025mm
5. Ball plug specification: A: Ball diameter 12.7mm0.05mm;
B: Ball diameter 6.35mm 0.05mm
C: Ball diameter 3.5mm 0.05mm
6. Sample tube: inner diameter 40mm, depth 105mm
7. Sink: Inner diameter 160mm, depth 118mm
Product Overview
The new standard JTG3410-2025 viscometer is suitable for measuring the viscosity of liquid petroleum asphalt, asphalt, emulsified asphalt and other materials in their flow state.
The viscosity of asphalt is the time required for 50 milliliters of asphalt material to flow out of a specified flow hole at a specified temperature, expressed in seconds.
Technical Specifications
1. Temperature control range: 0-100C Temperature control accuracy: 0.1C
2. Dual core refrigeration
3. Heating power: 800W
4. Automatic circulating water
5、 流孔直径: φ3mm±0.025mm φ4mm±0.025mm φ5mm± 0.025mm φ10mm ± 0.025mm
6. Sample tube: inner diameter 40mm, depth 105mm
7. Circular water tank: inner diameter 160mm, depth 100mm
8. Power supply voltage: 220V 50Hz
