Fully Hydraulic Drilling Rig_ZDY4000S

NegotiableUpdate on 06/01

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Product Description: The ZDY4000S fully hydraulic drilling rig belongs to the low-speed tunnel drilling rig and high torque type. It is suitable for using composite disc drill bits, roller drill bits, and spiral drilling tools to construct large-diameter drilling holes. It is mainly used for gas drainage, water exploration and other engineering holes in coal mines, and can also be used for surface engineering drilling construction. Zhejiang hydraulic drilling rig manufacturer consultation hotline: 13575743123

Product Details

1、 Scope of application of fully hydraulic drilling rig

The ZDY4000S fully hydraulic drilling rig belongs to the low-speed and high torque type, suitable for using composite disc drill bits, roller drill bits, and spiral drilling tools to construct large-diameter boreholes. It is mainly used for the construction of gas drainage, water exploration and other engineering holes in coal mines, and can also be used for the construction of surface engineering boreholes.

zdy4000S产品展示

2、 Meaning of fully hydraulic drilling rig model

Z represents the drilling rig, D represents the power head type, Y represents hydraulic transmission, the number represents the maximum rated torque N.m, and S represents the dual pump system.

3、 Product structure of fully hydraulic drilling rig

The ZDY4000S coal mine tunnel drilling rig adopts a grouped layout, with three main parts: the main engine, pump station, and control panel. The various parts are connected by hoses, which are flexible and easy to disassemble, making it convenient for relocation and transportation. In areas with poor transportation conditions, the main engine can be further disassembled.

4、 Features of fully hydraulic drilling rig products

1. The main engine, pump station, and control panel of the drilling rig can be flexibly adjusted according to the site conditions, with good disassembly and easy relocation and transportation;
2. Mechanical automatic unscrewing of drilling tools, easy removal of clamp slips, expanding the diameter of their through holes, facilitating the lifting of large-diameter drilling tools, reducing labor intensity for workers, and improving work efficiency;
3. The single oil cylinder directly feeds and pulls the drilling tool, with a simple structure, safety and reliability, and large feeding and pulling capabilities, improving the drilling rig's ability to handle accidents;
4. Adopting a dual pump system, the rotation parameters and feed process parameters are independently adjusted. The combination of variable oil pump and variable motor enables stepless speed regulation, and the speed and torque can be adjusted within a large range, improving the adaptability of the drilling rig to different drilling processes;
5. The diameter of the through hole of the rotator is large, and different diameter slip sets can be used to clamp drill rods of different diameters. The length of the drill rod is not limited by the structural dimensions of the drilling rig itself;
6. Adjusting the tilt angle of the machine body with a supporting oil cylinder is convenient, labor-saving, safe and reliable;
7. Centralized operation through the control panel allows personnel to stay a certain distance away from the orifice, which is beneficial for personal safety;
8. The hydraulic system protection device is complete, which improves the reliability of the drilling rig's operation. The hydraulic components are made of domestically advanced standardized products, with stable and reliable performance and strong universality.

5、 Product parameters of fully hydraulic drilling rig

drill depth	350/200/100	Give in ability	100KN
drill pipe diameter	Φ63.5/Φ73	Pulling ability	150KN
through-hole diameter	Φ	Motor Power	55KW
Drilling angle	0～±90°	Overall quality	2500kg
rotation speed	50~280r/min	Host quality	1500kg
Maximum torque	4000N.m	Pull up journey	600

6、 Product display of fully hydraulic drilling rig

Drilling rig host
The host consists of a rotator, a gripper, a feeding device, and a frame, which are easy to assemble and disassemble between each part.

pump station

The pump station is the power source of the drilling rig. It consists of explosion-proof electric motor, main oil pump, auxiliary oil pump, oil tank, cooler, oil filter, base and other components. The electric motor drives the oil pump through an elastic coupling, sucking oil from the oil tank and discharging high-pressure oil, which drives the various actuators of the drilling rig through the control panel.

zdy4000S泵站展示

Console
The control panel is the control device of the drilling rig. Composed of various control valves, pressure gauges, and fittings. The linkage function between the rotation, feed, lifting, chuck, and gripper of the drilling rig is achieved through the combination of valves on the control panel.

zdy4000S操作台展示

Detail Display

zdy4000S细节展示

7、 Qianjiang Machinery Strength Exhibition

（1） Design team

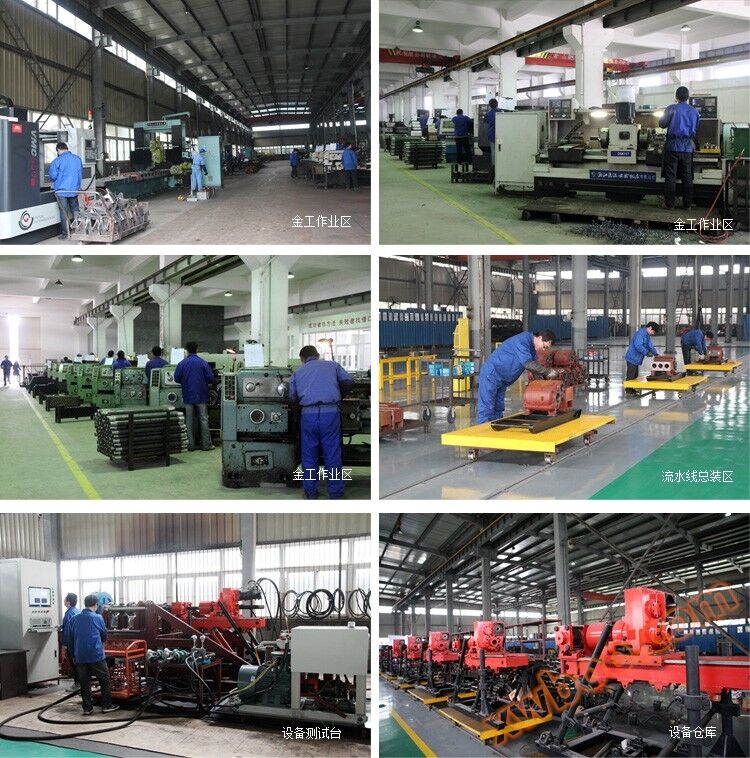

（2） Factory Display

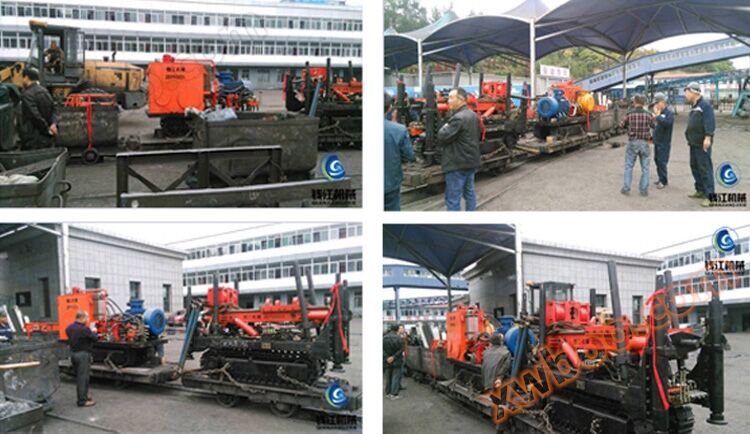

（2） Case Presentation-coalMining site

8、 Reasons for choosing Qianjiang

1. Qianjiang Machinery Company has sales, engineering, and after-sales departments, all of which are dedicated to serving you;
2. What we are fighting for is not price, but high-quality and friendly service;
3. Our salespeople and engineers will patiently listen to your requirements and desired results, and tailor materials for you;
4. Our after-sales colleagues will serve you from your order placement to actual production;
5. 30 years of industry experience;
6. On site visits to factories and offices.

9、 Introduction to Qianjiang Product Quality and Service

The drilling rig products produced by Qianjiang Machinery can truly achieve 90 degree right angle upward drilling without falling down. The products have the characteristics of small size, light weight, large button resistance, and no oil leakage. For more than 30 years, they have been highly praised by customers in the industry, ensuring product quality!
