Fully Hydraulic Drilling Rig_ZDY1250S

1、 Introduction to fully hydraulic drilling rig

Fully hydraulic drilling rig, also known as fully hydraulic drilling rig. A drilling rig that uses hydraulic pressure to drive and control all operating components. This type of drilling rig uses high-pressure variable oil pump and variable oil motor to achieve stepless speed change, which simplifies the transmission mechanism and eliminates the gearbox, reducing the weight of the drilling rig while fully utilizing power. At the same time, the drilling rig has a high rotational speed, stable operation, convenient and safe operation, and is easy to achieve automation and instrumentation. It has good adaptability to high-speed small-diameter drilling (such as diamond drilling) and high torque low-speed engineering drilling.

2、 Classification of fully hydraulic drilling rigs

According to their structural types, fully hydraulic drilling rigs can be divided into two types: vertical axis fully hydraulic drilling rigs and power head fully hydraulic drilling rigs. Fully hydraulic drilling rigs have been widely used internationally and are also the main direction for the development of new drilling rigs in China.

IIIall hydraulic operated drillproduct mix

The ZDY1250 coal mine tunnel drilling rig is mainly used for drilling and constructing gas drainage holes, hydrological exploration holes, and other engineering holes. This system adopts full hydraulic transmission, coaxial dual pump drive, smooth transmission, easy speed adjustment, and can be configured with multiple linkage modes. It has strong process adaptability and simple operation. The mechanical structure design is reasonable and compact, the action is reliable, and it is easy to disassemble, connect, and move. The drilling rig is arranged in groups and consists of three main parts: the main engine, pump station, and control panel. The rubber hose connection between each part allows for flexible arrangement of the relative positions of the three, with good disassembly and ease of relocation and transportation. In areas with poor transportation conditions, the main engine can be further disassembled.

4all hydraulic operated drillProduct Features

A type of fully hydraulic drilling rig. In addition to the general characteristics of a fully hydraulic drilling rig, it also uses a hydraulic motor and a simple gear reducer to form a power head, which directly drives the drilling tool to rotate. At the same time, two long oil cylinders are used to control the feeding and lifting of the drilling tool, which not only allows the power head to move up and down with the drilling tool, reducing the number of 'rod overturning' during the drilling process, but also helps to protect the core and reduce core blockage accidents; And the cancellation of the lifting mechanism consisting of drilling towers, winches, and wire ropes has reduced the weight of the equipment. The new engineering drilling rig widely adopts a fully hydraulic power head as the rotation and feeding mechanism of the drilling rig, and the lifting of the drilling tool adopts a winch to lift the telescopic drill rod, completely avoiding the disadvantages of relying on long oil cylinders to lift the drilling tool, with fast lifting speed and safe reliability.

5all hydraulic operated drillProduct parameters

drill depth	300/200/100M	Give in ability	36KN
drill pipediameter	Φ42/Φ50/Φ63.5	Pulling ability	52KN
through-hole diameter	Φ75	power	22KW
Drilling angle	0～±90°	Overall quality	1350kg
rotation speed	50-250r/min	Host quality	800kg
Maximum torque	1250N.m	Pull up journey	600

VIall hydraulic operated drillProduct Display

Drilling rig host
The host consists of a gripper, a feed device, a hydraulic chuck, and a power head; The gripper is located at the front of the drilling rig. When the drilling rig is in operation, the gripper is released, and when it is necessary to insert or remove the drill rod, it will automatically clamp or release according to the linkage situation. The feed force and lifting force during drilling operation are realized by the feed device. The power head is a component that realizes rotation, mainly composed of a hydraulic chuck, gearbox, and hydraulic variable motor. The power head utilizes the reciprocating motion of the feed cylinder along the body guide rail to achieve the feeding and pulling of the drilling tool. The hydraulic chuck adopts a normally open structure with hydraulic clamping and spring release, which has the characteristics of automatic centering, safety and reliability, and high clamping force. The frame is used to install the feed device and fix the drilling rig.


pump station
The pump station is the power source of the drilling rig. The pump station consists of explosion-proof motors, pumps I, II, and III, oil tanks, coolers, oil filters, bases, tracks, etc. Pump I is coaxially connected to pumps II and III, and the motor drives the main and auxiliary oil pumps through a coupling. The oil tank is a container that holds hydraulic oil and is placed above the oil pump. There are multiple protective devices installed on the fuel tank.

Console
The control panel is the control device of the drilling rig. Composed of various control valves, pressure gauges, and fittings. The linkage function between the rotation, feed, lifting, chuck, and gripper of the drilling rig is achieved through the combination of valves on the control panel.

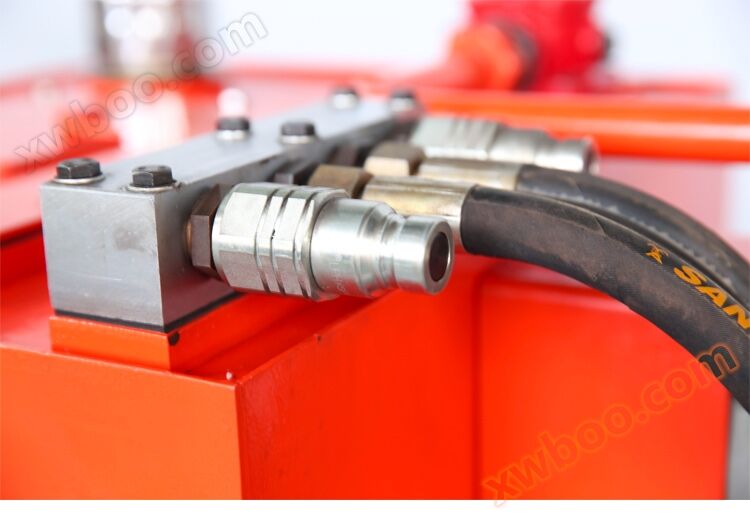

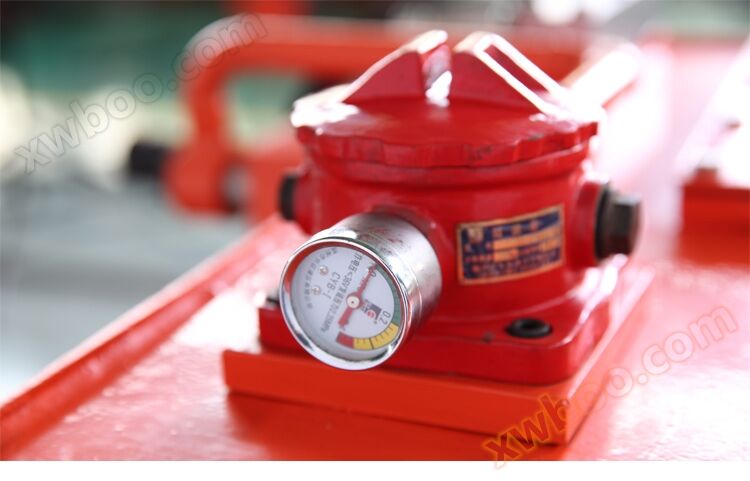

Detail Display

7、 Qianjiang Machinery Strength Exhibition

（1） Design team

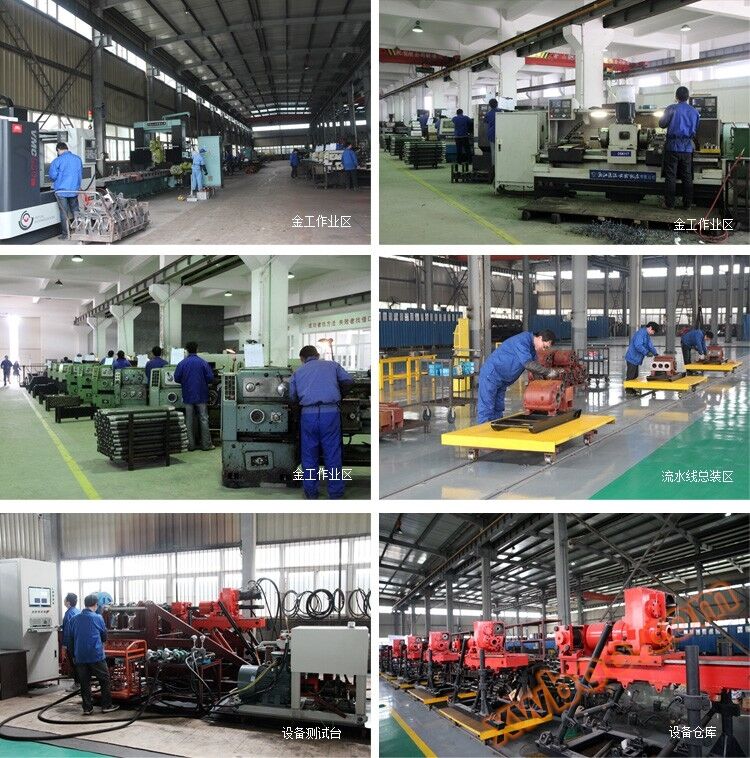

（2） Factory Display

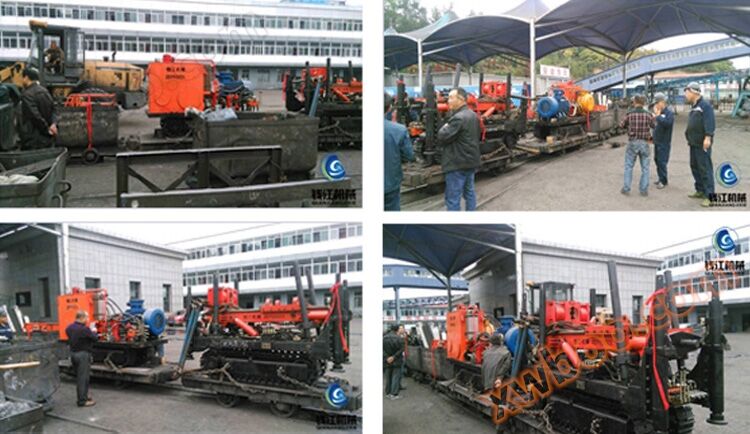

（2） Case Study - Coal Mine Site

8、 Reasons for choosing Qianjiang

1. Qianjiang Machinery Company has sales, engineering, and after-sales departments, all of which are dedicated to serving you;
2. What we are fighting for is not price, but high-quality and friendly service;
3. Our salespeople and engineers will patiently listen to your requirements and desired results, and tailor materials for you;
4. Our after-sales colleagues will serve you from your order placement to actual production;
5. 30 years of industry experience;
6. On site visits to factories and offices.

9、 Introduction to Qianjiang Product Quality and Service

The drilling rig products produced by Qianjiang Machinery can truly achieve 90 degree right angle upward drilling without falling down. The products have the characteristics of small size, light weight, large button resistance, and no oil leakage. For more than 30 years, they have been highly praised by customers in the industry, ensuring product quality!
