Overview
The current driving process of construction machinery is facing a complex situation of multiple intertwined factors. There are varying degrees of shortcomings and risk points in four aspects: human (driver skills, awareness, status), machine (equipment condition, technical level), environment (complexity and harshness of working environment), and management (management system, execution strength). The solution of millimeter wave radar fusion video product can effectively improve this problem.
Product Details
CAR-4R4CThunder Vision Warning SystemTransmitting dual beam fan-shaped electromagnetic waves forward through millimeter wave radar ，Receiving target echoes Reflection situation Determine if there are any obstacles ahead Provide feedback on the relative distance, relative velocity, and angle between obstacles and radar. Further auxiliary camera Head Screen This greatly enhances the experience of assisted driving.
System Composition
This system consists of 4 millimeter wave radars, 1 box maker, 4 cameras, 1 video all-in-one machine, and related wiring harnesses and screw accessories.The physical object is as follows:
wiring diagram

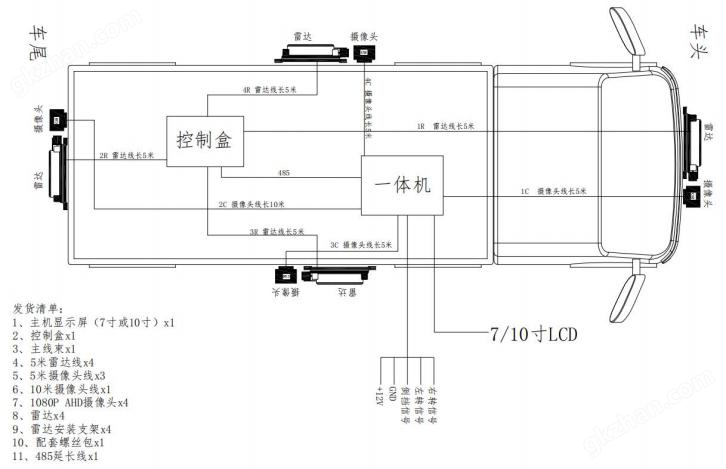

The entire system adopts standard plug-in connectors of various types According to the line label definition, connect the plug wires ，The wiring diagram is as follows.
Suitable for the following scenarios
lPatrol robot collision prevention Driving school coach car collision prevention
lSpecial engineering machinery/Vehicle obstacle avoidance Anti collision of unmanned ships
lagricultural machinery airport shuttle

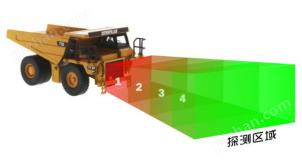

Special engineering vehicle anti-collision system, driving test coach vehicle anti-collision system Using millimeter wave radar sensors to detect the front or rear of the vehicleFang's goal Output the distance, angle, and velocity information of the detected target and send it to the video all-in-one machine in a timely manner. Driver combined with video display result After comprehensive decision-making, risk warning or automatic deceleration, braking and other functions can be made.
Radar parameters
feature |
parameter |
technical indicators |
|
Basic Parameters |
power supply range |
9～32V DC |
Operating Temperature |
-40℃ ~ 85℃ |
|
power consumption |
< 3.5W |
|
waterproof rating |
IP67 |
|
frequency band |
77～78GHz |
|
刷新率 |
33Hz |
|
communication interface |
CAN |
|
housing dimensions |
92*76.1*22.3mm |
|
weight |
109.5g |
|
|
Antenna performance |
Number of transmission and reception channels |
2Tx*4Rx |
Pitch beamwidth(-6dB) |
-5° ~ +5° |
|
Horizontal beamwidth(-6dB) |
- 60° ~ + 60° |
|
|
Detection performance |
Distance resolution |
0.2m |
Speed resolution |
2km/h |
|
speed measurement range |
±60km/h |
|
detection range |
40m |
Video all-in-one machine
feature |
parameter |
|
operating system |
embeddedLinux |
|
system language |
Simplified Chinese/Traditional Chinese, English, Korean, Russian (other languages can be customized)Words) |
|
Video compression format |
H. 264 compression mode |
|
OSD |
Character overlay function Support time Date, channel name, vehicle Overlay of ID and other information |
|
GUI |
graphicsOSD |
Can be accessed through an external display screen Remote control operation setting system parameters |
|
Video and recording system |
video input |
4CH 1080P backward compatible |
Preview function |
Single path2/4 Screen Splicing Preview , supports manual operation/Event triggeredFull screen display function |
|
video resolution |
1080P、720P、D1 optional |
|
Video quality |
Normal, Standard (default), High Definition, Ultra High DefinitionLevel 4 optional |
|
Video recording method |
Automatic recording upon startup |
|
audio |
audio input |
4 routes M12 aviation head interface |
compressed format |
G. 7111U compression format, speed 8KB/s |
|
Alarm input |
3 routes IO alarm input |
|
communication interface |
1 roadRS485 interface |
|
storage |
SD card |
maximum support 1TB |
|
Upgrade method |
supportUSB upgrade ，SD card upgrade, FTP remote automaticupgrade |
storage method |
Exclusive bare disk pre allocated storage method (industry-leading storage method) |
|
camera |
size |
37.5*52.7*56.75mm |
weight |
105g |
|
Video all-in-one machine |
size |
7 inches or 10 inches |
weight |
1kg(7 inch）1.5kg (10 inches) |
