Bridge/Slope Deformation Monitoring Solution

NegotiableUpdate on 02/09

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

By integrating deformation monitoring radar, high-precision target, anemometer, rain gauge, solar cell, acousto-optic alarm device and wireless network transmission equipment, this scheme has built a set of intelligent monitoring system for bridge collapse and slope landslide, realized multi parameter coupling analysis, intelligent early warning and self-organized network communication, and has the advantages of all-weather monitoring, edge computing optimization and visual management and control. It is also equipped with a complete implementation deployment and operation and maintenance guarantee mechanism to effectively improve the safe operation level of infrastructure and reduce the risk of major accidents.

Product Details

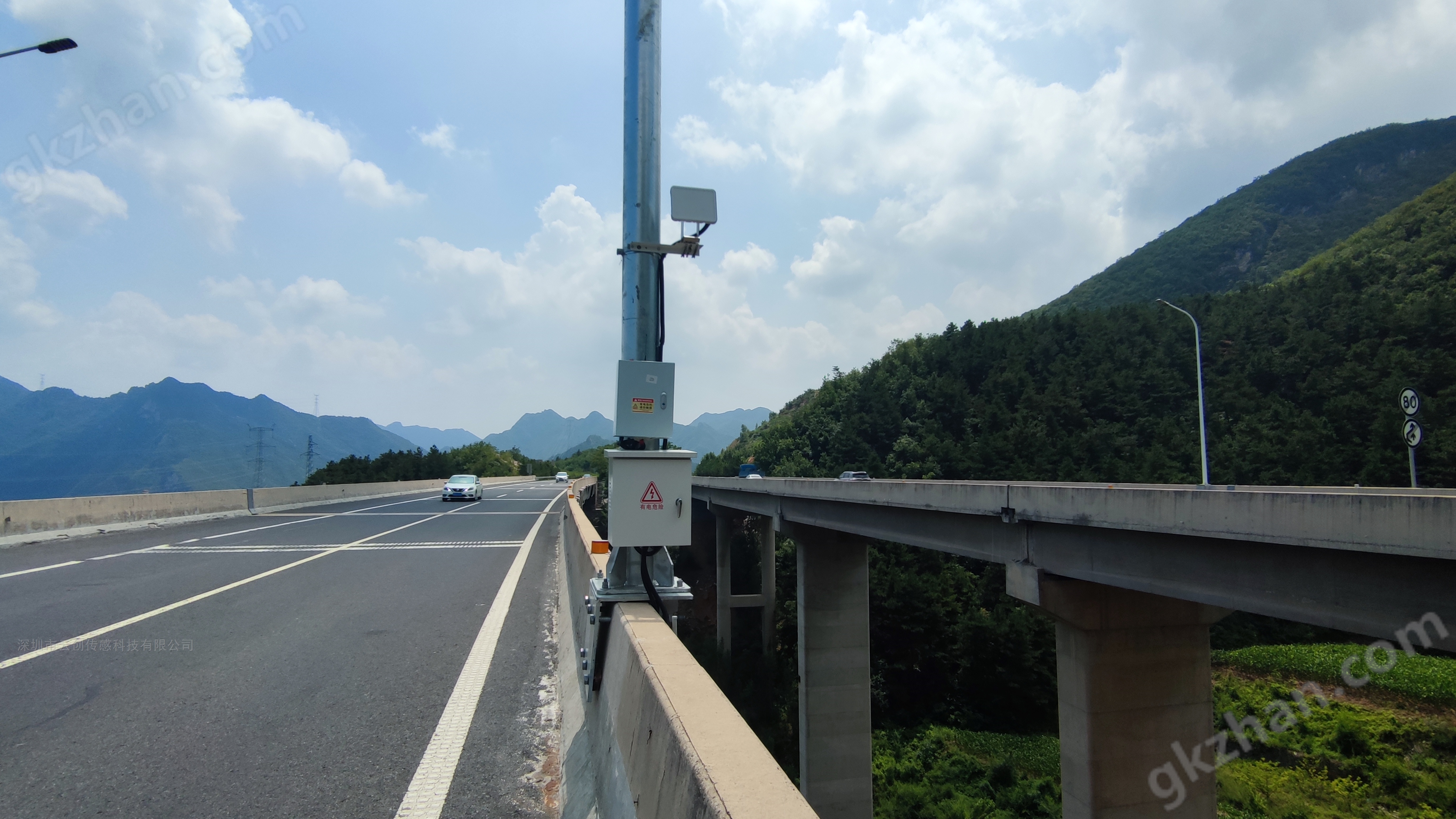

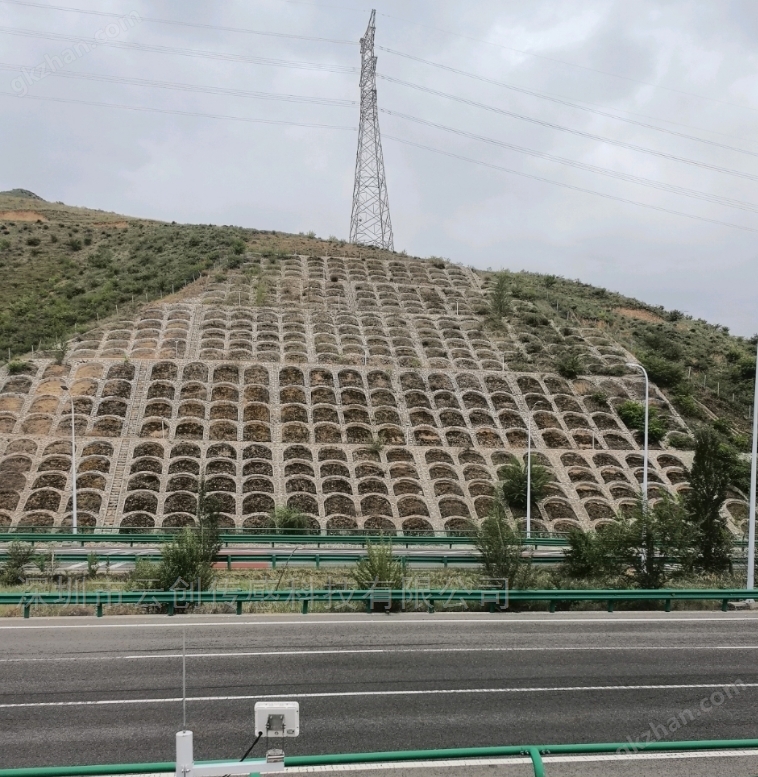

bridge/Slope deformation monitoring solution

桥梁/边坡形变监测解决方案

Multi source sensor fusion monitoring: integrated deformation monitoring radar, anemometer, rain gauge, etc Real time collection of bridge/slope deformation and meteorological data.

Intelligent graded warning: three-level warning mechanism+Sound and light alarm, combined with edge computing to improve response speed and accuracy.

Dual-mode wireless transmission ：4G5G+LORa networking, Mesh self-healing ensures stable and real-time data transmission.

24/7 adaptation: Wide temperature antifreeze and dustproof design+Powered by solar energy, unafraid of special weather conditions, achieving continuous monitoring around the clock.

Remote intelligent operation and maintenance : Self diagnostic abnormal stateSupport OTA upgrade and remote debugging through 4G network.

Emergency linkage: automatic retrieval of monitoring screen triggered by warning Support rapid deployment of drones to enhance response capabilities.

Deformation monitoring radar

Detection distance:> 250m

Detection accuracy:< 0.1m

Directional coverage range:120°

Meteorological monitoring unit

Three cup anemometer: range0-75m/s ，精度±3%

Tipping bucket rain gauge: resolution0.1mm ， Anti clogging design

Solar panels and batteries

Flexible thin-film solar panel array: power greater than300W ， Conversion efficiency ≥ 22%, IP68 protection

Paired with energy storage battery module: 24V 75AH ， Supports 72 hours of battery life on rainy and cloudy days

Sound and light warning device

Hardware:120dB alarm+LED strobe light combination

Function: Supports graded warning (yellow)/Orange/Red Three Light Code

Wireless transmission network

Configuration: can be customized according to requirements , equipped with4G/5G、 LoRa、 Bridge and other modules, equipment networking transmission

桥梁/边坡形变监测解决方案
