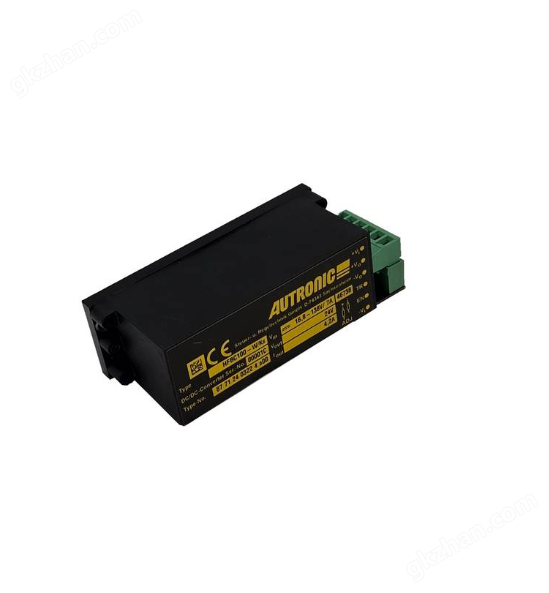

HFBC100-W/Ks series chassis installation power supply 87712403224

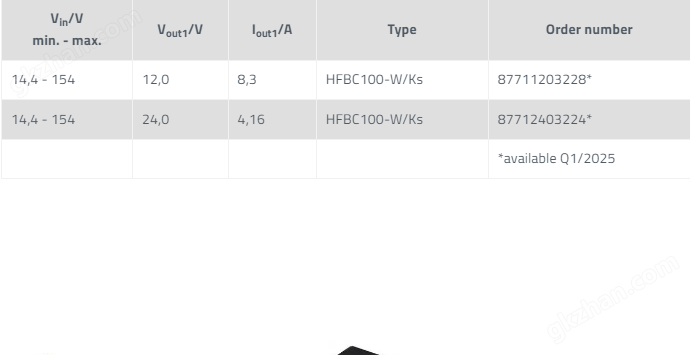

HFBC100-W/Ks series chassis installation module power supply 87712403224 8771120328

Used for automobiles, transportation, and railwaysDC/DC converter HFBC100-W/Ks

HFBC100-W/Ks series chassis installation power supply 87712403224

Features:

insulation

Wide input14,4 V to 154 V (one device)

Single output

Used for chassis installation

Over temperature shutdown

short circuit protection

Sealed, with better vibration resistance

Active surge current limitation

Active reverse polarity protection

holding time>10ms

Ambient temperature-40 ° C to+85 ° C

According to the railway（EMC）

Used for wall mounted installationThe HFBC100-W/Ks provides a wide input voltage range from 14.4 V to 154 V, with a power of 100 watts.

HFBC100-W/Ks is a DC/DC converter that adopts new technology and has a compact design.

A converter can cover fromAll onboard voltages from 24 V to 110 V. This broad solution is suitable for operating companies that wish to economically and efficiently utilize their components through a single device. DC/DC converters are suitable for use in harsh environments and applications, such as box PCs, display controls, fans, customer systems, walkie talkies, etc.

This device can be used in-Continuous operation between 40 ° C and 85 ° C without the need for derating. Due to packaging, vibration (5.72 m/s ²) and impact (50 m/s ²) are not a problem, and operating in humid environments is also not a problem. Fireproof, easy to install, efficient (93%) and user-friendly.

No additional components are required to complyEMC standards, as well as surge and ESD. This converter has a 10ms integrated power fault bridging function in a compact size (113 mm x 46 mm x 35 mm).

Standard features include active reverse polarity protection, surge current limitation, and overvoltage and overheating protection. In addition, the converter can prevent no-load and continuous short circuit situations. The modules can be connected in parallel and the output voltage can be adjusted.
