1W low-power high insulation power supply TRI1-0511 TRI1-0512

1W low-power high insulation power module TRI1-0511 TRI1-0512 TRI1-0513 TRI1-2411

TRI1It is a highly isolated and unregulatedDC/DCConverter series, using compactSIP-7Encapsulation.TRI 1The core feature of the series is a complex reinforced isolation system that can withstand high test voltages（8000 VDCsustain1In seconds,3000 VACsustain60Seconds) and working voltage（480 VACrms）. efficiency81%, can be in-40°Cto+85°COperate within the temperature range without reducing the rated value. All models have ±10%The input voltage range and precisely regulated isolated output voltage.TRI 1The series is designed for many demanding low-power applications in the industrial, transportation, and instrumentation fieldsgoodChoice

feature

EnhancedI/Oisolation3000 VACThe rated working voltage is480 VAC

High isolation peak voltage8000 VDC（1s）

Working temperature range-40to+85°CNo need to reduce the amount

efficiency81%

Input voltage range（±10%）：5、12The24 VDC

Overvoltage and short circuit protection

3Annual product warranty

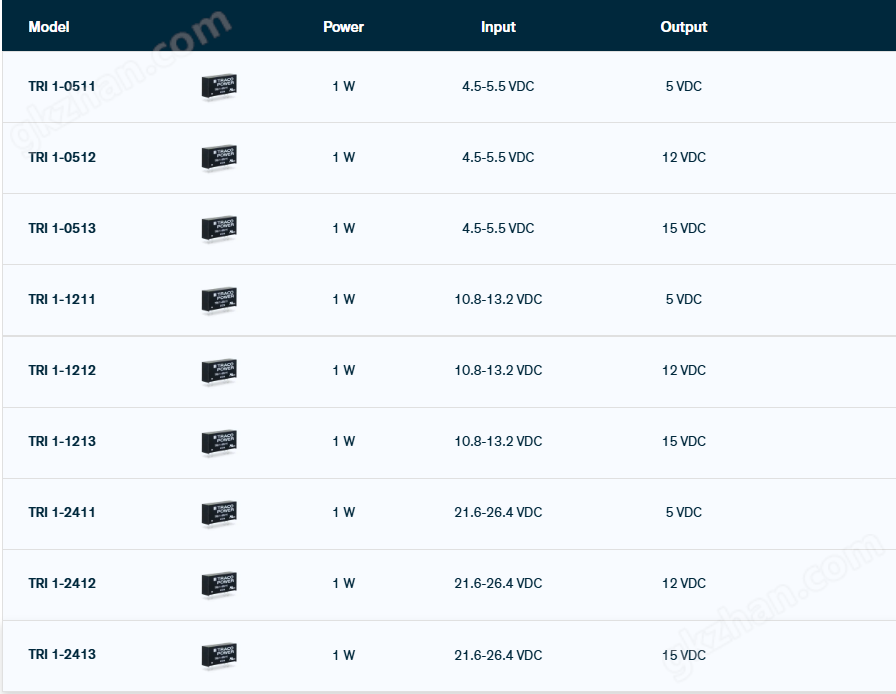

1W low-power high insulation power supply TRI1-0511 TRI1-0512

1W

1W low-power high insulation power supply TRI1-0511 TRI1-0512
