Enhanced I/O Isolation 5000VAC Stabilized Power Supply TRI6-1211

6W series enhanced typeI/O isolation 5000VAC regulated power supply TRI6-1211 TRI6-1212 TRI6-1213

TRI 6 is a highly isolated and regulated series of 6-watt DC/DC converters, packaged in a compact DIP-24 package. The core feature of the TRI 6 series is a complex reinforced isolation system that can withstand high test voltages (9000 VDC for 1 second, 5000 VAC for 60 seconds) and operating voltages (1000 VACrms). The new design allows for the integration of filters and greatly reduces idle power consumption. 89% efficiency allows operation within a temperature range of -40 ° C to+85 ° C without reducing the rated value. All models have a wide input voltage range of 2:1 and accurately adjustable isolated output voltage. The TRI 6 series is a great choice for many demanding applications in the industrial, transportation, and instrumentation fields.

feature

EnhancedI/O isolation 5000VAC, rated operating voltage 1000 VAC

Isolation peak voltage9000 VDC（1s）

Working temperature range-40 to+85 ° C

Low no-load power consumption120–240 mW

Internal filter

efficiency89%

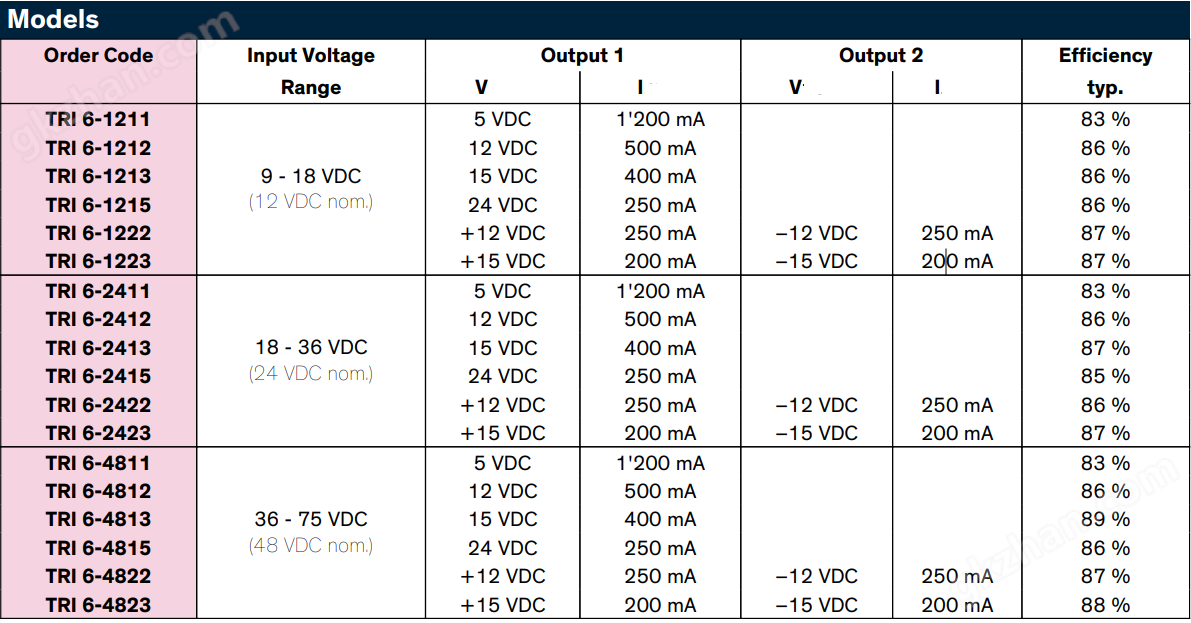

2: 1. Input voltage range: 9-18, 18-36, 36-75 VDC

Overload, overvoltage, and short circuit protection

3-year product warranty

Enhanced I/O Isolation 5000VAC Stabilized Power Supply TRI6-1211
