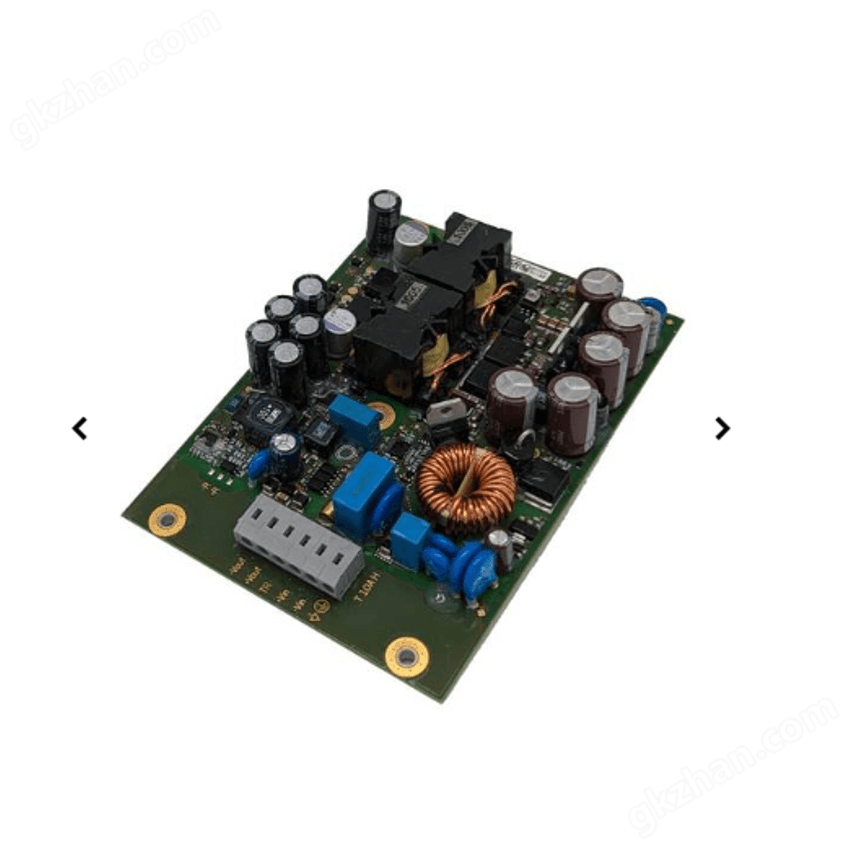

AUTRONIC Power HFC200-W/O Series 87692401229

AUTRONIC DC/DCconverterHFC200-W/Oseries87692401229

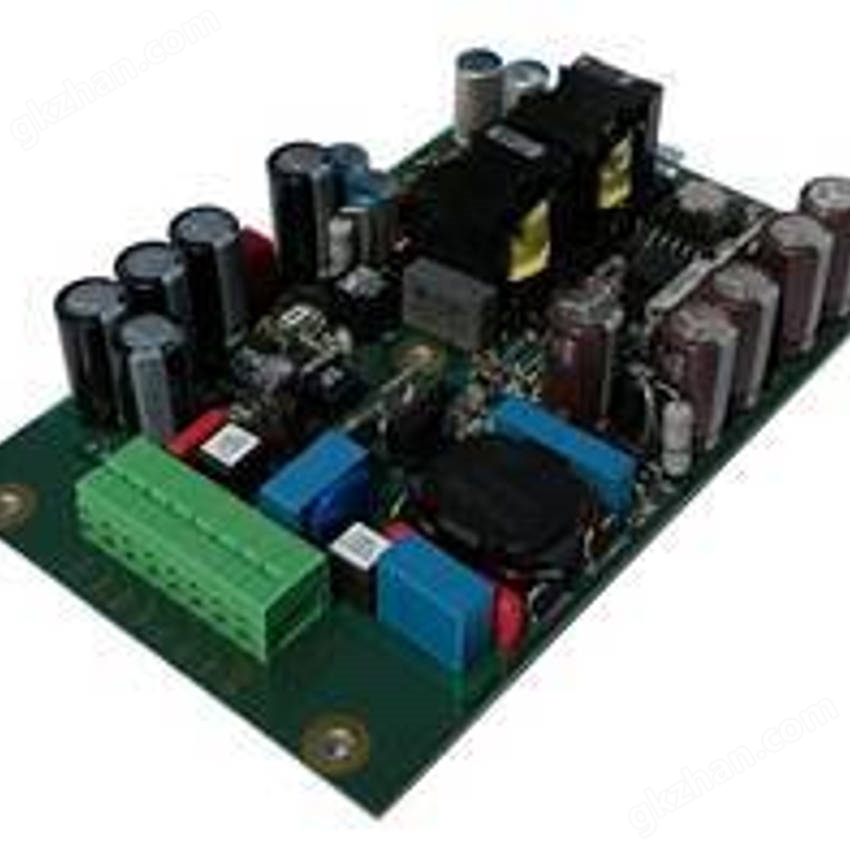

AUTRONIC DC/DCconverterHFC200-W - 200Tile, suitable for railways, etc87691201224

AutronicpassHFC200-WRailway compatibility with wide inputDC/DCConverter series. The output power is200 Wa's converter provides14.4…154VDCThe input range has been defined and standards have been established among similar products. All requirements used in railway technology are met in small area and flat design.

Therefore,AutronicEffectively achieve efficiency92%The plug and play solution simplifies the design. Suitable for railway specific applications without the need for additional wiring through external componentsEMCrequirement. Other functions include active surge current limitation(10A)Active reverse polarity protection, as well as overvoltage, overheating, and overcurrent protection. Integrated power supply fault bridging is a natural thing to do, adjust the output voltage(±10%)The possibility of running up to three converters in parallel is also the same.

The input voltage in Europe is covered by a converter, which simplifies the design and simplifies the approval process for customer applications. electrical insulation HFC200-WIt's based on temperatureTXDeveloped, available in200WRun down,70°CNo need to downgrade,85°Cat least10 minute. In addition to natural convection,AutronicThe simple installation of the converter only requires three small solder pads at the bottom to dissipate the generated heat, and complex heat sinks are unnecessary. The selection of printed circuit board materials is based on the fire resistance testing that has been conducted.

DC/DCconverterHFC200-W/OOverview:

electrical insulation

Single output（12 or24V）

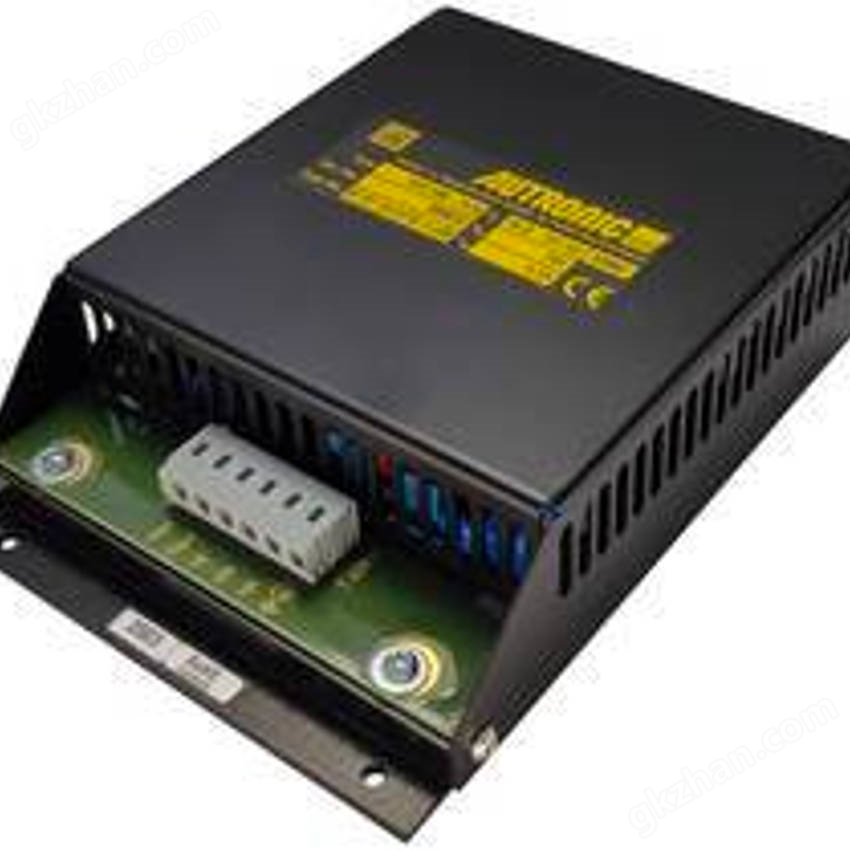

Chassis assembly

Over temperature shutdown

10msPower outage bridging

External shutdown

Anti short circuit and anti no-load protection

redundancy -Can be connected in parallel

Overvoltage protection in the output circuit, external power supply can also be used for positive output (OVP)

Immersion paint assembly

Fix components by bonding to prevent vibration

Temperature range:-40°Cto+85°C

Suitable for European railways(EMC)
