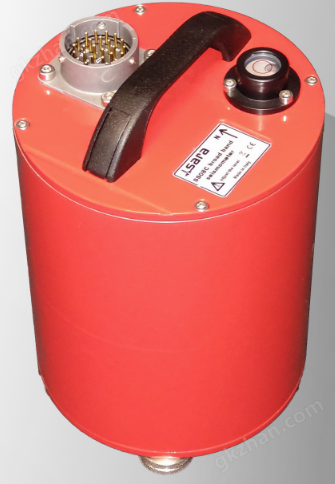

SARA seismic sensor

SS08C wideband compact three-axis seismometer

SS08C is a portable compact short/medium/wideband three-axis seismometer designed for fast and easy installation, wide temperature operation, and safe transportation. This device adopts a symmetrical structure architecture and is able to restore the velocity signal of the Z/Y/X axis from homogeneous U/V/W sensors. This technology can significantly improve the accuracy of real ground motion reconstruction.
application
*Research on Seismic Sounding at Observatory Level
*Reservoir microseismic monitoring
*Testing and evaluation of geotechnical properties
*Micro regional division

DoReMi detector

Land detectors are widely used in shallow and deep exploration geophysics. There are different types of such sensors on the market, with differences mainly in natural frequency, sensitivity, and directionality. Our digital seismometer DoReMi can fully utilize the full performance potential of the 4.5Hz high gain detector used for surface wave analysis (MASW). Land detectors need to be inserted into the ground for fixation. When direct insertion is not possible, a bracket or tripod can be used for data collection.

Application field

Land detectors are suitable for various exploration techniques.

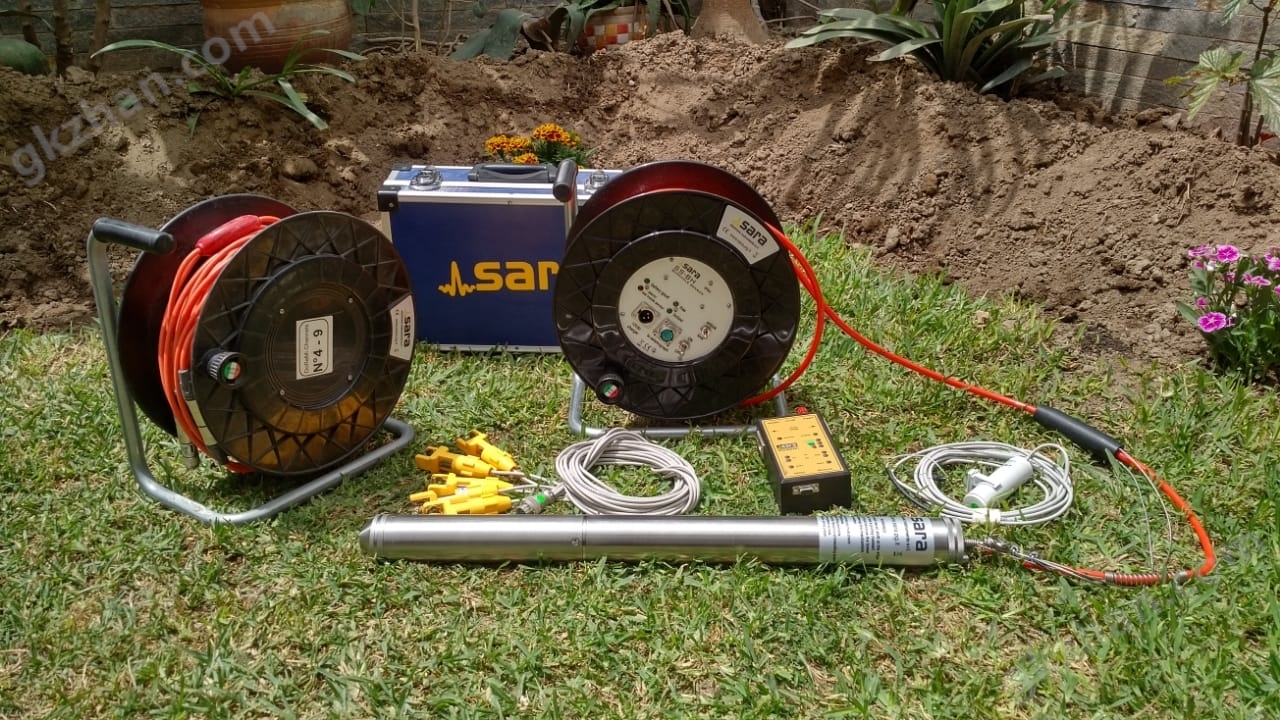

SS-BHV sensor mounting platform

SS-BHV is a platform designed for integrated installation of multiple sensors, such as speedometers (such as SS-45/20 or SS-10/08/02) and accelerometers (such as SA-10 or MEMS sensors). Its mechanical (passive spring) locking system allows the sensor to maintain a controllable direction at a depth of 10-15 meters from the ground. Other electric locking systems support deployment at greater depths.

Application field

This platform, combined with our SL06 recorder, can record seismic signals and is suitable for various application scenarios, including earthquake monitoring, oil and gas reservoir monitoring, etc.

SS08 portable wideband three-axis seismometer

SS08 is a portable broadband three-axis seismometer designed for fast and easy installation, wide temperature operation, and safe transportation. This device adopts a symmetrical structure architecture and is able to restore the velocity signal of the Z/Y/X axis from homogeneous U/V/W sensors. This technology can significantly improve the accuracy of real ground motion reconstruction.
application
*Observational seismology
*Reservoir microseismic monitoring
*Planetary Seismology and Geophysics
*Tsunami Warning System

SA10 force balance accelerometer

SA10 is a true force balance accelerometer designed for earthquake monitoring and industrial applications, suitable for both weak and strong vibration monitoring. This sensor was independently designed by our laboratory and has a largeThe dynamic range, compact structure, and high sensitivity make it an excellent product in the international marketOne of the products.
application
*Observational earthquake seismology
*Structural Health Monitoring
*Dam monitoring

SS02, SS05, SS10, SS20, SS45 seismic detectors

The SSxx series sensors are short period seismometers based on dynamic coil detectors, providing a range of solutions from pure mechanical electric sensors to those using classic Lippmann compensation
There are various models of force balance feedback sensors for compensation circuits. This series corresponds to natural frequencies of 0.2Hz, 0.5Hz, 1.0Hz, 2.0Hz, and 4.5Hz,
Named SS02, SS05, SS10, SS20, and SS45 respectively. We offer three housing configurations: compact, standard, and drilled.

application
*Observational seismology
*Structural Health Monitoring
*Run modal analysis
*Microseismic monitoring network
*Dam monitoring
*Soil exploration
