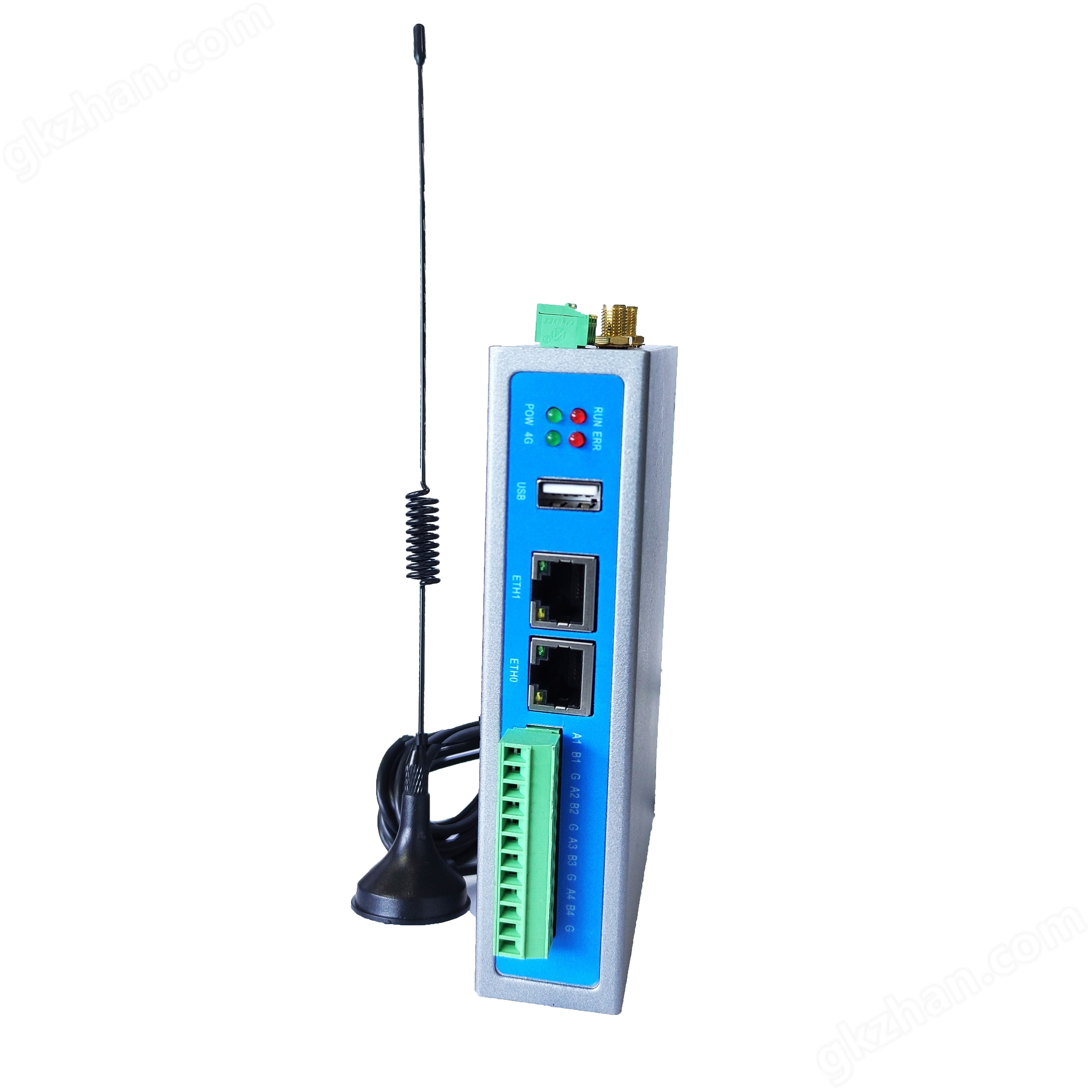

TNG-2400 Industrial Internet of Things Collection Gateway/MQTT/Protocol Conversion is a new generation of industrial gateway based on high-performance quad core A53 architecture and using domestic Kirin system. Built in 1GB DDR3, 8GB EMMC FLASH, supporting up to 1.2GHz frequency. The system provides two-way wired network communication, as well as wireless 4G and WIFI communication. It has the characteristics of small size, low power consumption, and high efficiency, and is suitable for power concentrators HMI、 Industrial control, gateway and other occasions.

Product Details

Industrial IoT collection gateway/MQTT/protocol conversionTNG-2400 supports collecting Modbus, DLT645, T188, IEC_61850, IEC104, PLC, OPCDA, OPCUAStandard protocols such as SQL SERVER and MYSQL support the collection and uploading of data from machine tools and robot equipmentForwarding supports industry-specific protocols such as energy consumption standards, MQTT customization, HTTP customization, etc

Industrial IoT collection gateway/MQTT/protocol conversion

Four core A53, main frequency 1.2GHz, Mali400 GPU, supports MMU

Built in 1GB DDR3 memory, customizable 512MB/1GB/2GB

8GB EMMC Flash， Supports 16GB (customizable 4GB/8GB/16GB)

Supports TF card and 64GB

Supports AES/DES/3DES/XTS encryption and decryption, MD5/SHA/HMAC/RSA/ECC

Built in WDT watchdog, overflow time less than 14 seconds, supports idle wake-up and power-off wake-up

Real time clock, built-in backup battery for power failure

2 RS232 communication ports, built-in ESD protection, fully isolated protection design

4-channel RS485 communication port, built-in ESD protection, fully isolated protection design

2 Ethernet ports in total, 1 10M/100M adaptive industrial Ethernet, standard RJ45 interface, 110M/100M adaptive industrial Ethernet, standard RJ45 interface

4G wireless network: The frequency bands include TDD-LTE/FDD-LTE/and are compatible with current technologiesThe GSM network. Supports a downlink speed of 10Mbps and an uplink speed of 5Mbps, with one SIM card interface(Parallel connection), 1 antenna interface

Input voltage 6~32VDC, recommended to use 12VDC

Size: 141.7 * 100 * 33 (chassis length * width * height excluding hanging ear size)

Working temperature: -20~65 ℃, 5~95% RH, non condensing

Storage temperature: -40~85 ℃, 5~95% RH, non condensing
