German Mahr MarSurf PS1 surface roughness meter

Product Details

Product Description

MAHR plays a crucial role in roughness measurement instruments. As early as the 1980s, MAHR introduced M4P to meet the needs of production line measurement and established new measurement standards. Today, these devices have met international high standards. MAHR's portable roughness measuring instrument is lightweight, ergonomic, flexible to operate, and can achieve high-precision measurement at different positions or using V-shaped blocks.With the continuous improvement of production quality in manufacturing and machinery industries, the surface finish quality of high-tech manufactured products is increasingly demonstrating its importance. This makes it even more crucial to provide a fast, simple, and standardized solution for measuring instrument design. In some cases, to save time and money, measurement tasks may be performed on the production line rather than in the testing room; In cases where the components that need to be tested may be too large or heavy to be easily transported, they can only be measured on site. (discontinued, alternative model)PS10)

Complete portability

MarSurf PS1 can fulfill its promise of being "completely portable" in any way, including:
. Design a standalone power supply with a measurement operation that can last up to 500 times on a single charge, ensuring long-lasting and long-lasting power supply

. Provide a one-stop solution, with a size no larger than one digital camera, simple and lightweight (400 grams/0.88 pounds)

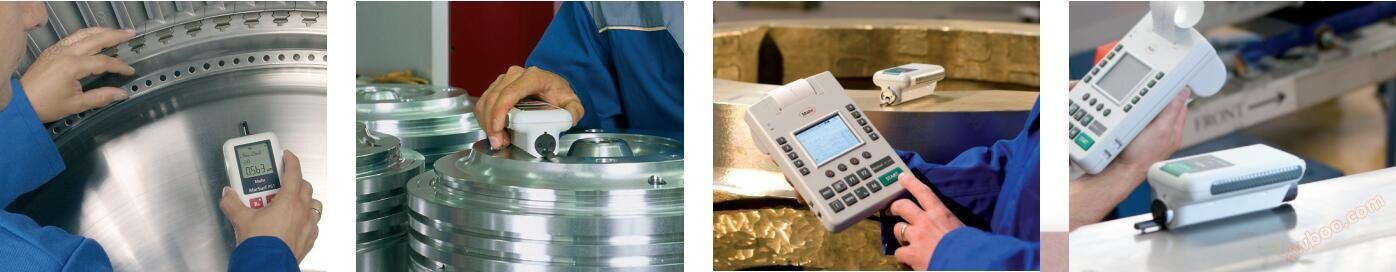

MarSurf-PS1粗糙度仪

Wide range of applications

Quick and easy measurement operation (* * certification) The pocket sized brief operation guide reflects the simple operation requirements of PS1, allowing you to quickly master its main functions and complete your measurement tasks with accurate measurement results. The MarSurf PS1 uses a simple card loading design to achieve height adjustment for measurement, thanks to this design, even conical workpieces can be measured freely. Flip up and down measurement method, using MarSurf PS1 can easily achieve measurement by simply setting the position of the instrument and workpiece. This design allows even small components to be measured directly without the need for additional card mounting devices.

Powerful flexibility
The measurement function within the standard design scope is sufficient to enable this versatile intelligent small instrument to complete all your measurement tasks
Realize your positioning needs at any location
Capable of performing all-round horizontal, vertical, lower end face or other required positions of components
Custom measurement
Up to 24 parameter evaluation functions provide powerful functionality similar to laboratory instruments
No error operation
Implementation of roughness standard
Automatically select cutoff wavelength
Allow non professionals to achieve accurate measurement results

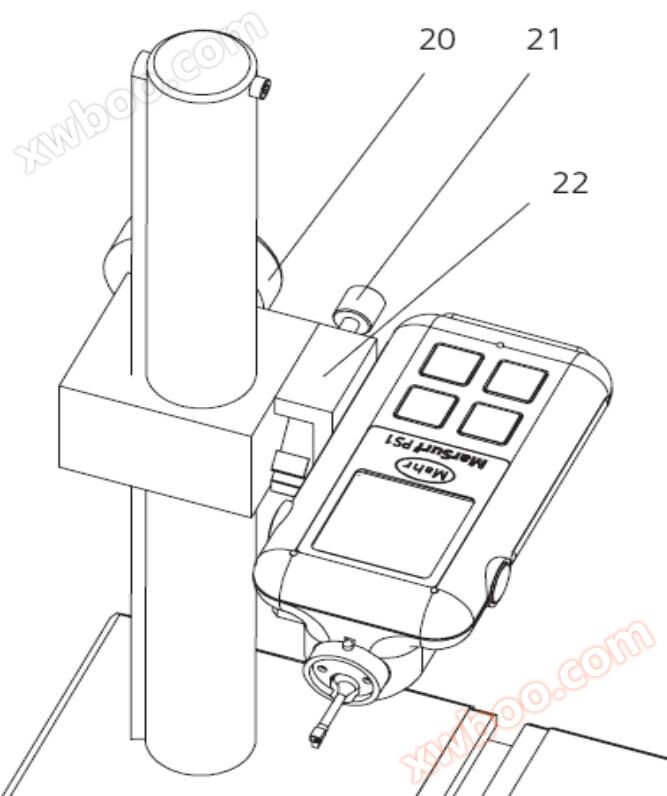

测量立柱结构图

Measurement column structure diagram

MarSurf PS1 can be used with measuring columns:MarSurf PS1 can be easily installed on ST-D/ST-F or ST-G measuring columns,MarSurf PS1 is an excellent entry-level measuring instrument that can perform a wide range of standardized roughness measurement requirements,If the optional V-shaped positioning device is used, surface roughness measurement perpendicular to the contact surface can also be achieved.

Technical specifications:

measuring range	Metric and Imperial Systems
measuring principle	Needle measurement method
Measuring head	Inductive sliding probe, measuring force of0.7mN
Measurement parameters	DIN/ISO: Ra, Rq, Rmax, Rpk, Rp, Rk,Rvk, Rt ,RPc ,Rmr,Rsm, Rsk, CR, R, Rx,Mr1,Mr2,A2,Vo,Cf,ClL,AR JIS: Ra, Rq, Ry(equiv. to Rz) ,RzllS, tp(equiv. to Rmr), RSm, S ASME: Rp, Rpm, RPc, Rsk MOTIF: R, AR, Rx, CR, CL, CF
language	English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Czech, Polish, Russian, Japanese, Chinese, Korean, Turkish
measuring range	350μm、180μm、90μm(Automatic Switching)
Calibration function	Dynamic calibration
Memory function	Big15A silhouette, many20000A measurement result
Other functions	Sealing settings (barcode protection), date/time
Battery	Lithium ion battery
size	140×50×70（mm）
weight	400g
External power supply	100v-240v

To learn more about the portable roughness meter and height gauge of Mal, please feel free to leave a message online or call for consultation！

contact number:021-58951071 QQ:814294500

Standard configuration
1. MarSurf PS1This unit	2. Driver unit	3. 1A standard sensor that meets the design specifications
4. Built in battery	5. Integrated roughness standard for protective cover design	6. Height adjustment attachment
7. Sensor protection device	8. Charger/The power adapter	9. Operating instructions
10. Handbag with shoulder strap and loop strap	11. USBConnect cable lines	12. Order number: 6910210
