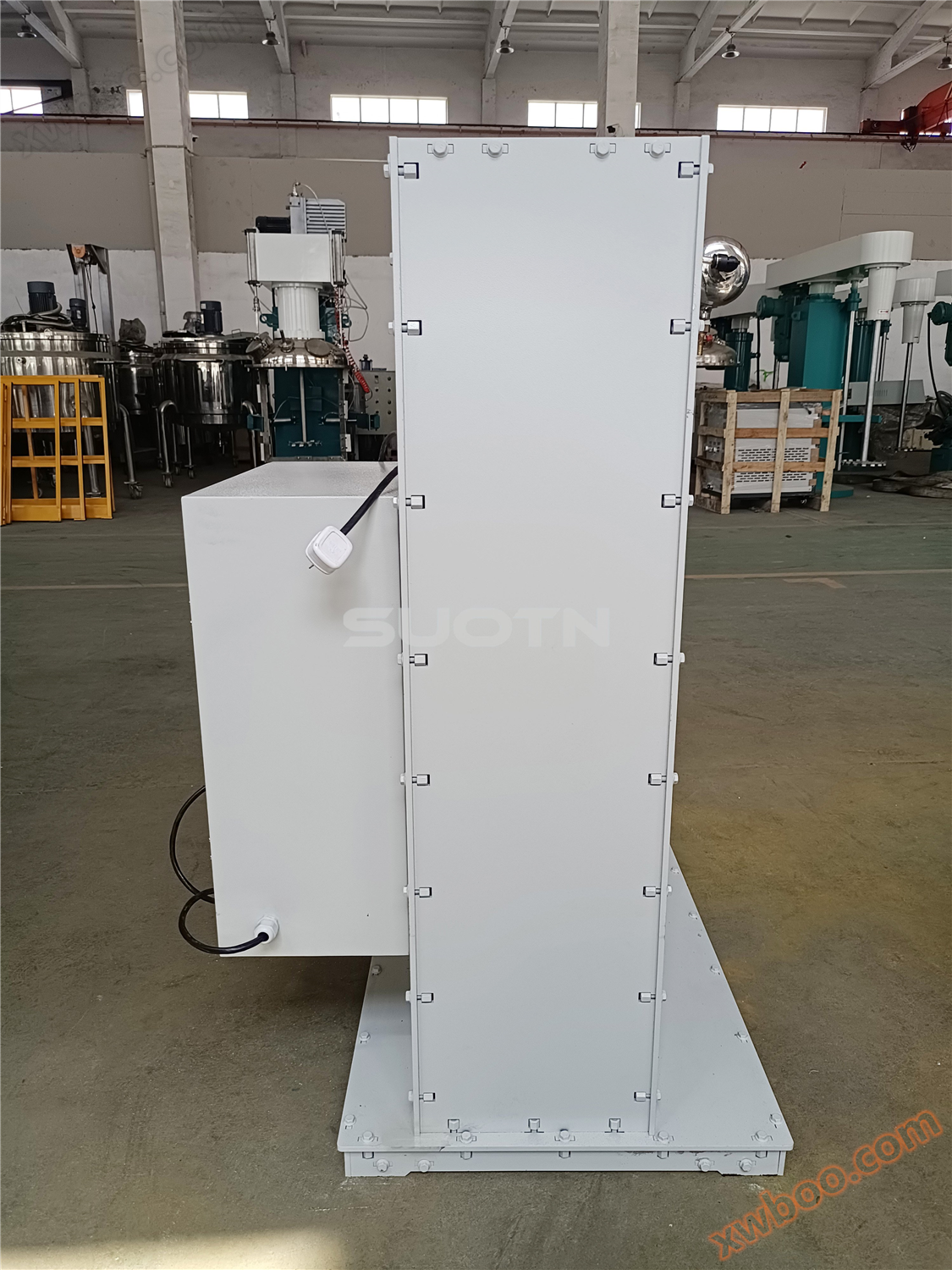

2L Dual Planetary Blender

NegotiableUpdate on 01/17

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

coating

Product Details

characteristic:
Planetary stirring is used for dispersion and mixing of solid-liquid and liquid-liquid phases; Due to its extremely high output torque, it is particularly suitable for viscosity

Large products such as adhesives, polyurethane, silicone, silver aluminum paste, etc.

After the barrel wall is precision machined by a large vertical lathe, it is then polished by a large automatic polishing machine to ensure that the movable scraper on the planetary carrier rotates

Scrape off the material on the barrel wall completely to ensure that there is no residual material on the barrel wall and improve the mixing effect.

Customizable vacuum type, allowing materials to be stirred in a vacuum state to achieve defoaming function, and also capable of vacuum feeding, not only reducing material loss

Consumption ensures the hygiene of the feed.

The stirring blades inside the bucket simultaneously rotate and self rotate, allowing the materials to be mixed extremely evenly and with higher efficiency compared to ordinary ones

The mixer has also been greatly improved.

Heating, cooling, and constant temperature control can also be carried out according to the temperature requirements during stirring.

1. Basic technical parameters:
1-1 Product Name and Specification Model	A、 Planetary mixer; B、 Specification and model: YSX-2
1-2 Basic Structure	A、 Electric pot body lifting type; B、 Single direct material temperature measurement mode; C、 Disperse shaft+dual stirring shaft+scraping wall---.
1-3 buckets (mixing bucket)	A、 Capacity: 2L;
1-3 buckets (mixing bucket)	A、 texture of material: SUS304， monolayer B、 Mirror polishing ensures good roundness; C、 The flange plane on the mixing drum is matched with the flange on the upper drum body;
1-4 Upper bucket body (kettle lid)	A、 Material Science: SUS304。 B、 A powder/liquid feeding hopper that can be quickly switched on and off; 1 spotlight; Equipped with 2 small windows (one spotlight port and one observation hole), reserved with one vacuum pressure gauge port, and other necessary connections (vacuum/vent/backup).
1-5 Mixing principle	The low clearance design of the dual mixing slurry ensures no dead corners, and the low-speed mixing blade strongly interferes with the kneading motion and up/down/left movement Right circulation movement ensures that materials are fully dispersed and mixed.
1-6-1 Revolution/Mixing Motor and Variable frequency drive, reducer	A、 Quantity: One unit; B、 Motor power: 0.75Kw/4P; C、 Equipped with a frequency converter that matches the motor. D、 Matching reducer, reduction ratio I=40.26, service factor fa=1.55.
1-6-2a planetary revolution speed	Speed: 0~65 rpm, adjustable.
1-6-2b wall scraper(Optional)	Quantity: 1 set; Scraping material: SUS304 and Teflon; Consistent with the speed of planetary revolution----Based on the assumption Calculated
1-7-1 Mixing shaft/mixing slurry speed	Speed: 0~146rpm, variable frequency speed regulation.
1-7-2 Mixing slurry	A、 texture of material: SUS304； B、 Quantity: Two (groups).
1-7-3 Selection of mixing slurry form	A、 Standard configuration:Fried Dough Twists
1-8-1 Distributed Motor	A、 Quantity: One unit; B、 Motor power: 0.75Kw/4P; C、 Equipped with a frequency converter that matches the motor.
1-8-2 dispersion speed (rotation)	A、 Speed: 0~2980 rpm, adjustable;
1-8-3 dispersing shaft and dispersing disk	A、 texture of material: SUS304； C、 Dispersion disk diameter:Φ40mm；
1-9 lifting (crossbeam, transmission part) Parts, upper barrel body, planetary components)	A、 Electric lifting: equipped with linear guide rails; Positioning device; Positioning is safe and reliable. B、 Lift motor power: 0.18KW, lift height: to be determined
1-10 Vacuum System	A、 The stirring and dispersion process can be carried out in a vacuum state; Vacuum degree: ≤- 0.09Mpa.
	B、 Sealing material: The dynamic seal is a combination of PTFE and fluororubber, and the static seal is fluororubber..
	C、 Dynamic seal: using mechanical seal; D-2、 Static sealing: using O-ring seals.
	D、 Including vacuum pump
1-11 Positioning System	A、 Equipped with positioning adjustment device and locking device, it can accurately position the mixing drum and upper drum body, and prevent rotation. B、 The positioning stop of the lower flange of the upper barrel body is precisely matched with the mixing barrel to ensure that the position of the mixing barrel is reasonable and the positioning is accurate.
1-12 Distribution Cabinet	Display and operation of functions such as variable frequency speed regulation, temperature display (control), spotlight, lifting, and emergency stop during equipment operation All are carried out on the distribution cabinet.
1-13 Safe Operation	A、 By relying on a frequency converter and limit travel switch, and using a specially designed control route, the upper bucket body is ensured to rise to the specified level Automatically stop after positioning.
1-13 Safe Operation	B、 During the upward movement of the upper bucket, the mixing and dispersing part of the equipment cannot start running; Similarly, the machine operates When mixing materials, the upper bucket cannot be raised and the mixing bucket cannot be opened.
