20L planetary mixer
NegotiableUpdate on 01/17
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
coating
Product Details
Product Introduction:
The SXJ20L planetary mixer is composed of planetary mixing system, high-speed dispersion system, planetary cover, scraper, reactor, hydraulic lifting system, hydraulic discharge system, vacuum system, and frame. It is a new and efficient mixing device developed through innovation and improvement based on the digestion and absorption of advanced technologies at home and abroad.
working principle:

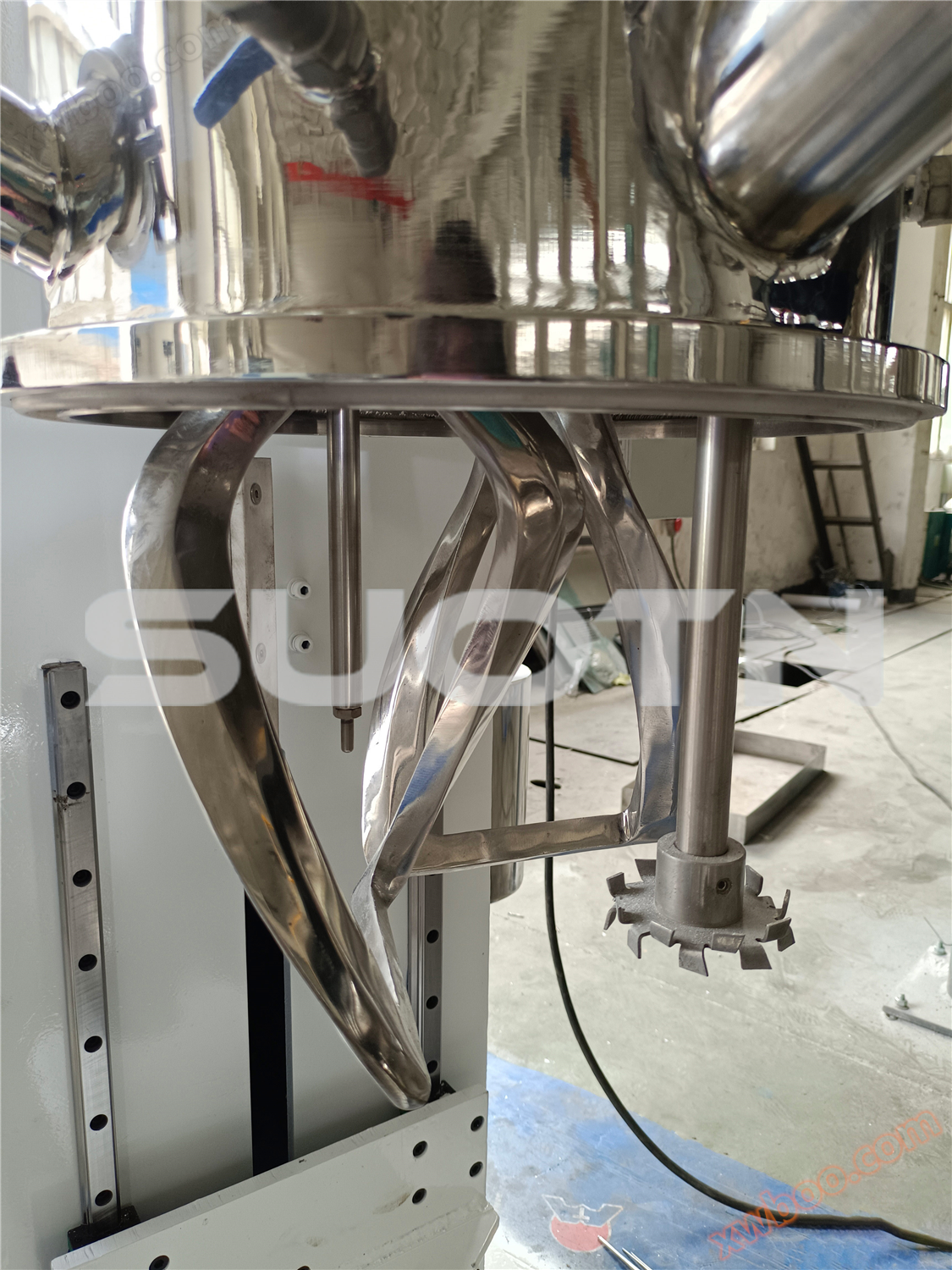

When the planetary carrier rotates, it drives the two stirring frames and dispersing shafts inside the box to revolve around the axis of the reaction kettle while rotating at high speed, thereby subjecting the material to strong shear and binding effects, achieving the purpose of full dispersion and mixing; There is a scraper on the planetary carrier that rotates with the carrier, constantly scraping and wiping against the barrel wall to ensure that there is no residual material on the barrel wall and improve the mixing effect. The length of mixing time is controlled by the user based on the properties of the material and can be adjusted through the control panel. The cover and planetary mixer are lifted and lowered by hydraulic pressure, ensuring smooth, fast, and lightweight operation.
This device can work under vacuum and continuously discharge water and other volatile substances, making it suitable for use as a degassing kettle. The reaction kettle can be heated or cooled by circulating oil and water as needed; Steam heating can also be used.
The discharge system adopts a hydraulic lifting and pressing tray, which moves downward under the action of hydraulic pressure to press out the material in the bucket. At the same time, it can achieve packaging function with GFG-A silicone filling and sealing machine or silicone filling and capping machine. The sealing device of the pressure plate can effectively isolate the air from the rubber material, prevent material from returning, and wipe the barrel wall without retaining any material.
Due to its excellent mixing, shearing, and dispersing properties, this device is particularly suitable for the dispersion and mixing of solid solid, solid-liquid, and liquid-liquid phases. Therefore, it can be widely used in industries such as chemical, food, light industry, pharmaceutical, and building materials.
Main technical parameters:
Product Display:
The SXJ20L planetary mixer is composed of planetary mixing system, high-speed dispersion system, planetary cover, scraper, reactor, hydraulic lifting system, hydraulic discharge system, vacuum system, and frame. It is a new and efficient mixing device developed through innovation and improvement based on the digestion and absorption of advanced technologies at home and abroad.
working principle:
When the planetary carrier rotates, it drives the two stirring frames and dispersing shafts inside the box to revolve around the axis of the reaction kettle while rotating at high speed, thereby subjecting the material to strong shear and binding effects, achieving the purpose of full dispersion and mixing; There is a scraper on the planetary carrier that rotates with the carrier, constantly scraping and wiping against the barrel wall to ensure that there is no residual material on the barrel wall and improve the mixing effect. The length of mixing time is controlled by the user based on the properties of the material and can be adjusted through the control panel. The cover and planetary mixer are lifted and lowered by hydraulic pressure, ensuring smooth, fast, and lightweight operation.
This device can work under vacuum and continuously discharge water and other volatile substances, making it suitable for use as a degassing kettle. The reaction kettle can be heated or cooled by circulating oil and water as needed; Steam heating can also be used.
The discharge system adopts a hydraulic lifting and pressing tray, which moves downward under the action of hydraulic pressure to press out the material in the bucket. At the same time, it can achieve packaging function with GFG-A silicone filling and sealing machine or silicone filling and capping machine. The sealing device of the pressure plate can effectively isolate the air from the rubber material, prevent material from returning, and wipe the barrel wall without retaining any material.
Due to its excellent mixing, shearing, and dispersing properties, this device is particularly suitable for the dispersion and mixing of solid solid, solid-liquid, and liquid-liquid phases. Therefore, it can be widely used in industries such as chemical, food, light industry, pharmaceutical, and building materials.
Main technical parameters:
| project | parameter |
| Equipped with power supply | 380 V 50 Hz (three-phase five wire power supply) |
| Working volume of reactor | 20 L |
| Mixing motor power | 2.2Kw |
| Revolution speed | Adjustable from 0 to 48 rpm |
| Rotational speed | Adjustable from 0 to 100 rpm |
| Ultimate vacuum degree | -0.095 Mpa |
Product Display:
