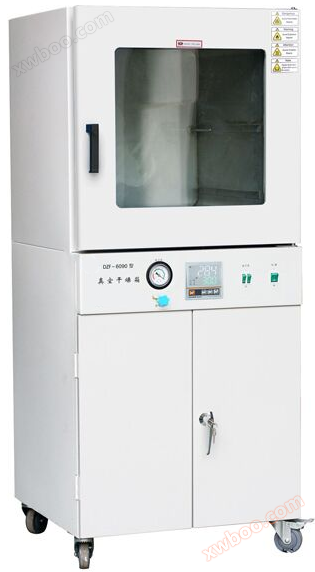

Vacuum drying ovens are widely used in research and application fields such as biochemistry, chemical pharmaceuticals, medical institutions, agricultural research, environmental protection, etc., for powder drying, baking, and disinfection and sterilization of various glass containers. It is particularly suitable for fast and efficient drying of heat sensitive, easily decomposable, easily oxidizable substances and complex components.

Product Features

Rectangular studio, maximizing effective volume, microcomputer temperature controller, precise and reliable temperature control.

The tempered and bulletproof double-layer glass door allows for easy observation of objects inside the studio.

The tightness of the box door closure can be adjusted, and the silicone rubber door sealing ring formed as a whole ensures high vacuum inside the box.

The studio is made of stainless steel plates to ensure the durability of the products.

Upgraded LCD display vacuum drying oven, in addition to the above functions, also has LCD temperature display for more precise temperature control. The digital vacuum gauge uses digital technology to control the vacuum degree. The vacuum degree is automatically controlled by the digital vacuum gauge. The vacuum gauge uses a resistance silicon tube pressure sensor to ensure stable pressure values, which are not affected by air flow. The stable pressure values are transmitted to the vacuum gauge LED display screen with a control accuracy of ± 1%, changing the history of manual lever control. It can also be equipped with RS-485 interface, which can connect printers and computers, and can record changes in temperature parameters (optional).

Product parameters

Model number

DZF-6920ES

Power supply

～220V 50Hz

Power consumption

≥6000W

ambient temperature

5～40℃

temperature range

RT+10～200℃

Temperature resolution

0.1℃

Temperature fluctuation

±1℃

Vacuum degree

133Pa

Studio materials

1Gr18Ni9Ti

Studio size

450×450×450

External dimensions

Load carrier (block) (standard)

2

In addition to the above functions, the "ES" also includes an intelligent LCD programmable temperature controller, a digital vacuum gauge, the ability to set the desired temperature and vacuum degree, and an inert gas inlet valve.
