Nakanishi Zhongxi Electric Spindle Speed Regulator HES810-BT40

Nakanishi Zhongxi Electric Spindle Speed Regulator HES810-BT40

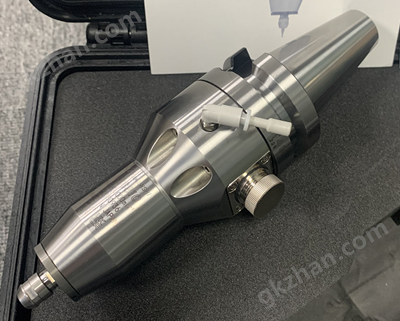

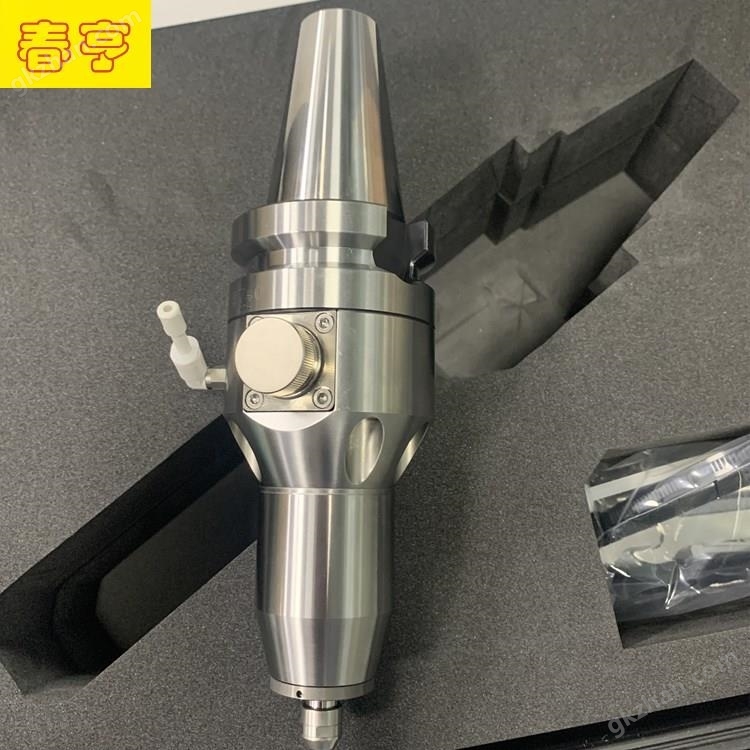

Nakanishi Zhongxi Electric Spindle Speed Regulator HES810-BT40， NAKANISHI Zhongxi high-speed electric spindle, CNC machining center BT40 speed increasing tool holder, high-speed 80000 rpm adjustable, jumping accuracy within 1 μ m, output power 350W, overall weight 2.2kg, mainly used to increase machine speed, achieve good smoothness, precision and improve processing efficiency in high-speed cutting, commonly used in precision molds, microelectronics, precision instruments, aviation energy and other fields.

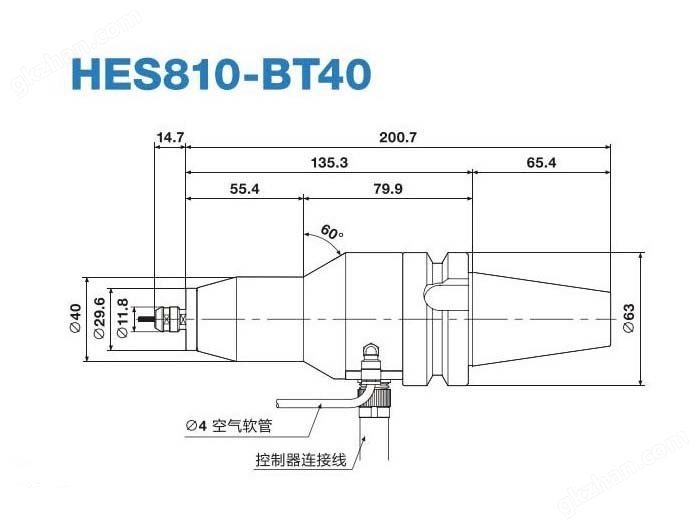

Electric spindle speed reducer HES810-BT40Product dimensions

Electric spindle speed reducer HES810-BT40Torque output characteristics

Electric spindle speed reducer HES810-BT40Product matching

Electric spindle speed reducer HES810-BT40Product advantages

1. Easy installation: The bracket can be installed on the tool holder of the CNC machining center for use.

2. High speed: 80000rpm, adjustable speed;

3. High precision: using ultra-high precision bearings, with a runout accuracy within 1 μ m;

4. Stable operation: Low heat generation, can run continuously for 24 hours without interruption;

5. Save machine tool spindle consumption: independent drive, machine tool spindle does not need to work, improving the service life of machine tool spindle;

Electric spindle speed reducer HES810-BT40Product Application

(1) Speed increasing tool holders are mainly used to increase the speed of machine tools, enabling high-speed cutting to achieve good smoothness, precision, and improve processing efficiency. They are commonly used in precision molds, microelectronics, precision instruments, aviation energy, and other fields;

(2) When using micro milling cutters and drill bits for machining, it is necessary to use high rotational speeds to improve surface machining quality and greatly increase machining efficiency. If the rotational speed of the machine tool itself cannot meet the requirements, a speed increasing tool holder must be used;

(3) It can be installed on machine tools such as machining centers, CNC turning centers, boring and milling machines, making it possible for ordinary machining centers to perform high-speed milling, engraving, drilling, and high gloss polishing.
