Monado speed photoelectric sensor from the United States

Monado speed photoelectric sensor from the United States(Line length 7.6 meters) Model: ROS-P-25 Warehouse number: M411098

Monado speed photoelectric sensor from the United States

Model: ROS-P-25

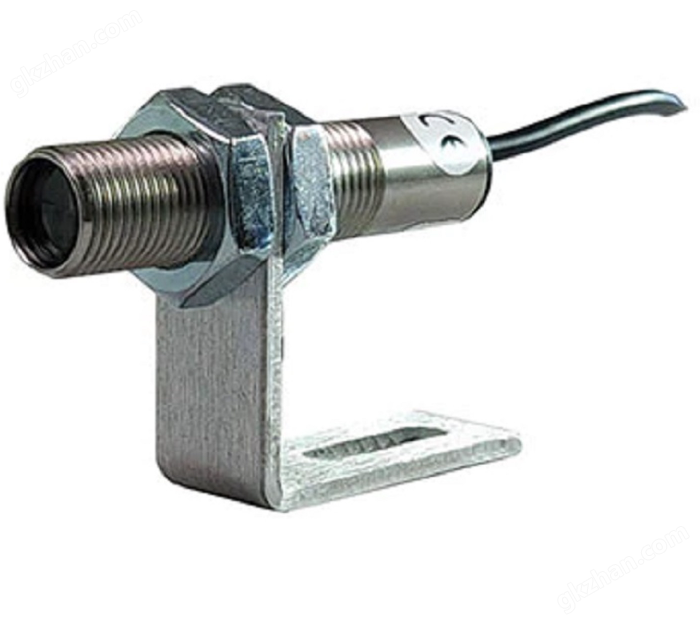

ROS (photoelectric sensor): The sensor housing is made of threaded stainless steel for easy fixation, using a red LED light source. After collecting signals, the green LED light at the tail lights up to indicate measurement. It has a large range and a wide application range, with a measurement distance of up to 7.6 meters

Common use: Suitable for measuring distances in most situations.

Technical parameters

Measurement distance: 1m, inclination angle ≤ 45 °

Range: 1-250000RPM

Temperature range: -10 ℃ -70 ° C

Supply voltage: 3.3-15Vdc@45mA

Signal output: TTL (same input voltage)

Connection line length: 7.6m

Size: Length 73x Φ 16 (mm)

Model: ROS-P-25

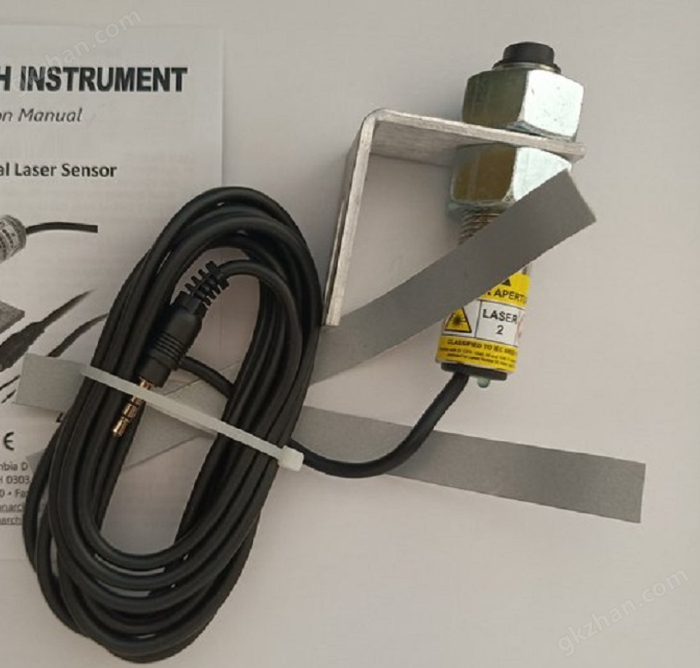

Sensor, 7.6-meter-long connecting cable (3.5mm stereo connector), 30cmT-5 reflective strip, mounting bracket
