Advantech supplier 2U rack mounted industrial computer ACP-2010MB

NegotiableUpdate on 04/25

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Advantech supplier's 2U rack mounted industrial computer ACP-2010MB $r $n adopts a 2U standard 19 inch rack structure, with a body height of only 88.9mm, which saves cabinet space compared to traditional 4U models. It also supports dual modes of rack installation and desktop vertical installation, suitable for dense deployment of server rooms and small on-site desktop scenes. The SECC cold-rolled steel plate chassis is equipped with a front safety lock, balancing durability and equipment safety. Equipped with Micro ATX motherboard and Intel 11th/12th generation Core processors, paired with 128GB

Product Details

Advantech supplier 2U rack mounted industrial computer ACP-2010MB

Core Features

project	Specifications

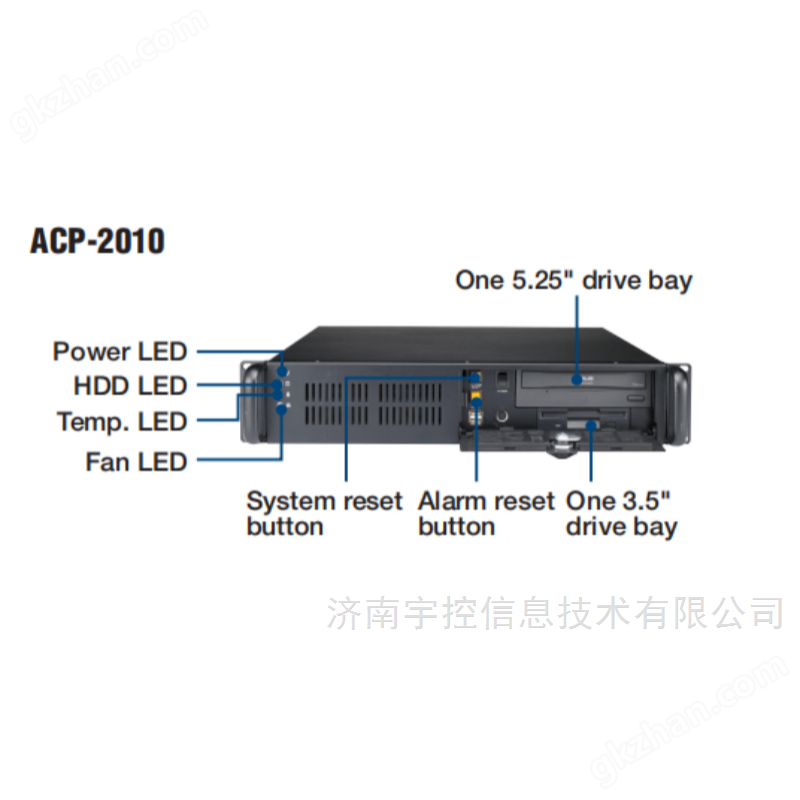

Model structure	2U standard rack mounted (19 inches) compact design
Chassis material	SECC cold-rolled steel plate chassis, scratch resistant and wear-resistant, front panel with safety lock
Dimensions (W × H × D)	482.6mm × 88.9mm × 380mm (excluding protruding parts and foot pads)
Net weight	About 7.5kg (excluding power supply and internal accessories)
Installation method	19 inch rack installation, desktop vertical installation

Scope of application

project	Specifications
Motherboard support	Support Micro ATX motherboard (maximum size: 244mm × 244mm)
CPU support	Compatible with Intel LGA1700/LGA1200 interface processors (such as 12th/11th generation Core processors), requiring corresponding motherboards
Memory support	Depending on the motherboard specifications, it supports DDR4/DDR5 UDIMM memory, with a maximum capacity of 32GB per unit and a maximum total capacity of 128GB (depending on the number of motherboard memory slots)
Storage Configuration	2 3.5-inch SATA hard drive slots (compatible with HDD/SSD), support hard drive hot swappable bracket (optional), some motherboards support NVMe M.2 interface
Expansion slot	3 full height PCI/PCIe expansion slots (configuration: 1 x PCIe x16, 1 x PCIe x8, 1 x PCI, the number of slots can be adjusted according to the motherboard)

Power Specifications

project	Specifications
Power type	2U standard ATX 300W/400W industrial grade high-efficiency power supply, optional 1+1 redundant power supply to enhance reliability
input voltage	AC 90-264V, 47-63Hz wide input, suitable for complex power grid environment
power protection	Equipped with overvoltage, overcurrent, short circuit, and over temperature protection functions, meeting industrial grade reliability requirements
certification standard	International certifications such as CE, FCC Class B, UL, CB, etc

Advantech supplier 2U rack mounted industrial computer ACP-2010MB

1. In the field of intelligent manufacturing, it is suitable for equipment control and data acquisition scenarios in small and medium-sized production lines. With balanced expansion capabilities, it can be equipped with motion control cards to achieve precise control of production line motors. With the help of data acquisition modules, it can collect real-time operating parameters of equipment,

The wide temperature stable operation characteristics are suitable for the working environment of high and low temperatures and high dust in the workshop, providing reliable data support for the MES system.

2. Intelligent security monitoring is suitable for medium-sized security scenarios such as residential areas and parks, supporting the integration of multiple high-definition cameras. Real time processing and storage of monitoring images can be achieved through the expansion of video capture cards; The 2U compact design can be densely deployed in the monitoring room,

The wide power supply adapts to fluctuations in the power grid, ensuring uninterrupted operation of the monitoring system 24/7.

3. Data communication and edge computing are used as edge node equipment in small and medium-sized enterprise network rooms. The network expansion card can realize multi link data forwarding. Medium and high configuration memory and processor can quickly process edge side data preprocessing tasks,

Save core cloud computing power; The optional feature of redundant power supply enhances the continuous operation reliability of communication nodes and avoids data transmission interruptions.

4. Suitable for small and medium-sized medical equipment data processing (such as testing instrument data recording) and laboratory automation testing platforms in medical and laboratory scenarios. The compact body can be embedded in equipment cabinets or placed on experimental tables, and the low-noise intelligent heat dissipation design meets the requirements

The laboratory requires a quiet environment and stable operational performance to ensure the accuracy of experimental data collection and analysis.

5. Transportation and intelligent buildings are used for intersection traffic signal control terminals or building security access control system hosts. The 2U rack design can be embedded in traffic signal cabinets or building weak current wells, and can adapt to a wide temperature environment to resist the effects of high and low temperatures outdoors or underground,

The expansion slot can be equipped with a dedicated control module to achieve signal linkage and device management.
