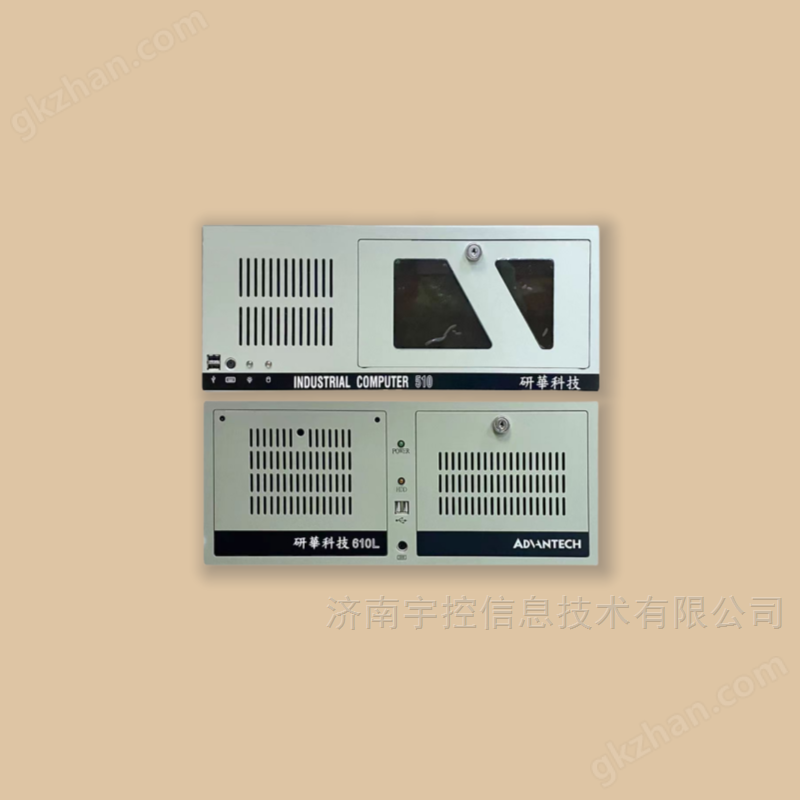

Advantech industrial control computer agent sells IPC-610H

NegotiableUpdate on 04/25

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Advantech Industrial Control Computer Agent Sales IPC-610H $r $n Durability: Classic 4U rack design, steel plate chassis anti drop and anti vibration, supports wide temperature operation (-10 ℃~60 ℃), stable in harsh environments such as industrial workshops and outdoor computer rooms $r $n Cooling Ceiling: Honeycomb ventilation network+large-sized silent fan, matched with intelligent temperature control, does not "scream" even under high load (such as multiple expansion cards running), does not shut down for a long time $r $n Expansion Unlimited: Supports ATX motherboard, can insert multiple full/half height expansion cards (graphics card, acquisition card, motion control card, etc.), suitable for complex industrial scene needs

Product Details

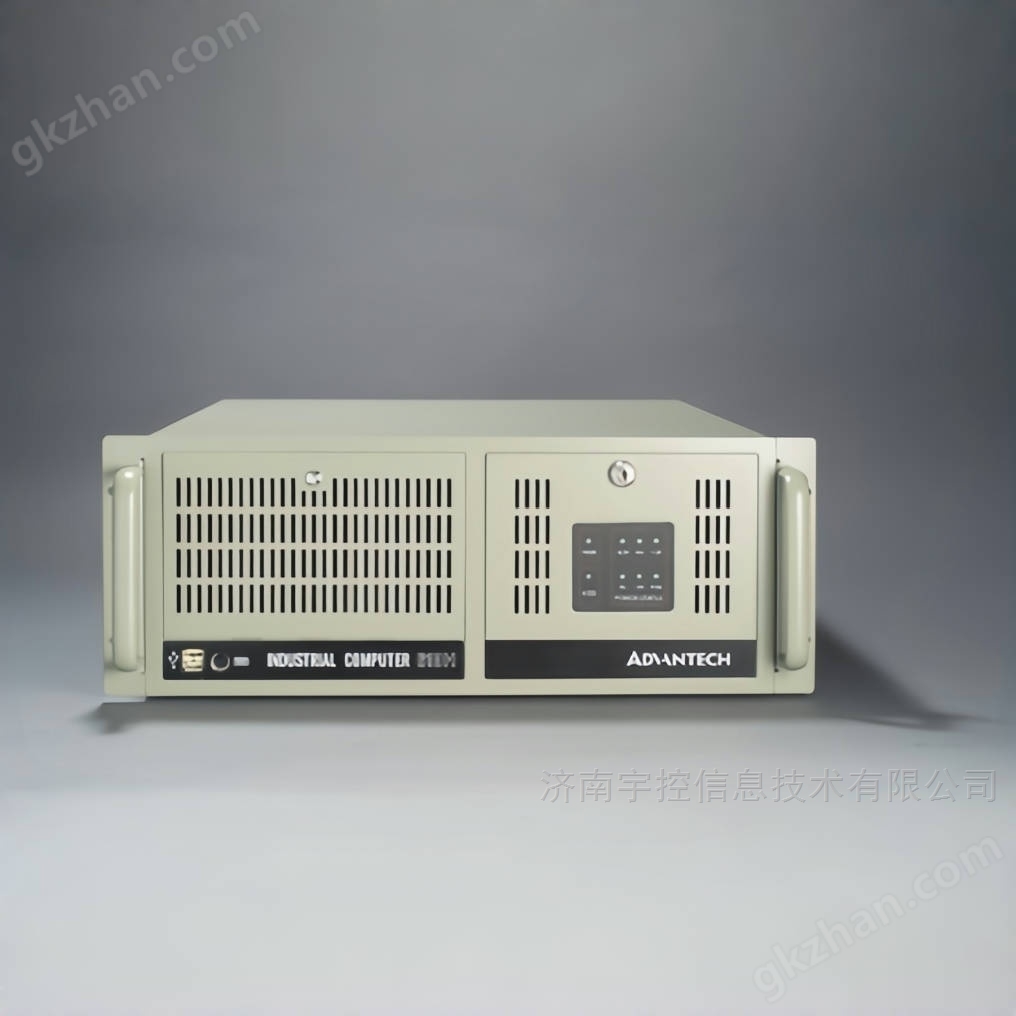

Advantech industrial control computer agent sells IPC-610H

project	Specifications
Model structure	4U standard rack mount (19 inches)
Chassis material	SECC steel plate body, front panel with lock design
Dimensions (W × H × D)	482.6mm × 177mm × 450mm (excluding panels and floor mats)
Net weight	About 10kg (excluding power supply and accessories)

project	Specifications
Power type	Standard ATX 400W/500W industrial grade power supply (optional redundant power supply)
input voltage	AC 100-240V, 50/60Hz wide input
Power certification	Compliant with industrial certification standards such as CE, FCC, UL, etc

project	Specifications
Operating Temperature	-10 ℃~60 ℃ (depending on CPU and cooling configuration)
Storage temperature	-40℃ ~ 70℃
Operating Humidity	10%~90% RH without condensation
Vibration protection	At work: 5-10Hz 1.5g peak to peak value; Storage time: 10-500Hz 2g peak to peak value
Impact protection	At work: 10g peak value (11ms duration); Storage time: 20g peak (11ms duration)

project	Specifications
front-end interface	2 x USB 3.0 interfaces, 1 x power switch, 1 x reset button
Rear interface	Depending on the motherboard configuration, it typically includes PS/2 interface, USB 2.0/3.0 interface, RJ45 network port, VGA/HDMI display interface, audio interface, etc
status indicator light	Front end: Power indicator light (PWR), hard disk activity indicator light (HDD); Rear: Power indicator light

Advantech industrial control computer agent sells IPC-610H

Scope of application

✅ Intelligent Manufacturing: Control of Production Line Equipment, Data Collection and Monitoring ✅ Power industry: substation data monitoring, power grid dispatch system ✅ Transportation field: Intersection monitoring, rail transit signal processing ✅ Medical/Security: Medical equipment data processing, high-definition monitoring and storage ✅ Laboratory/computer room: automated testing platform, server cluster nodes
